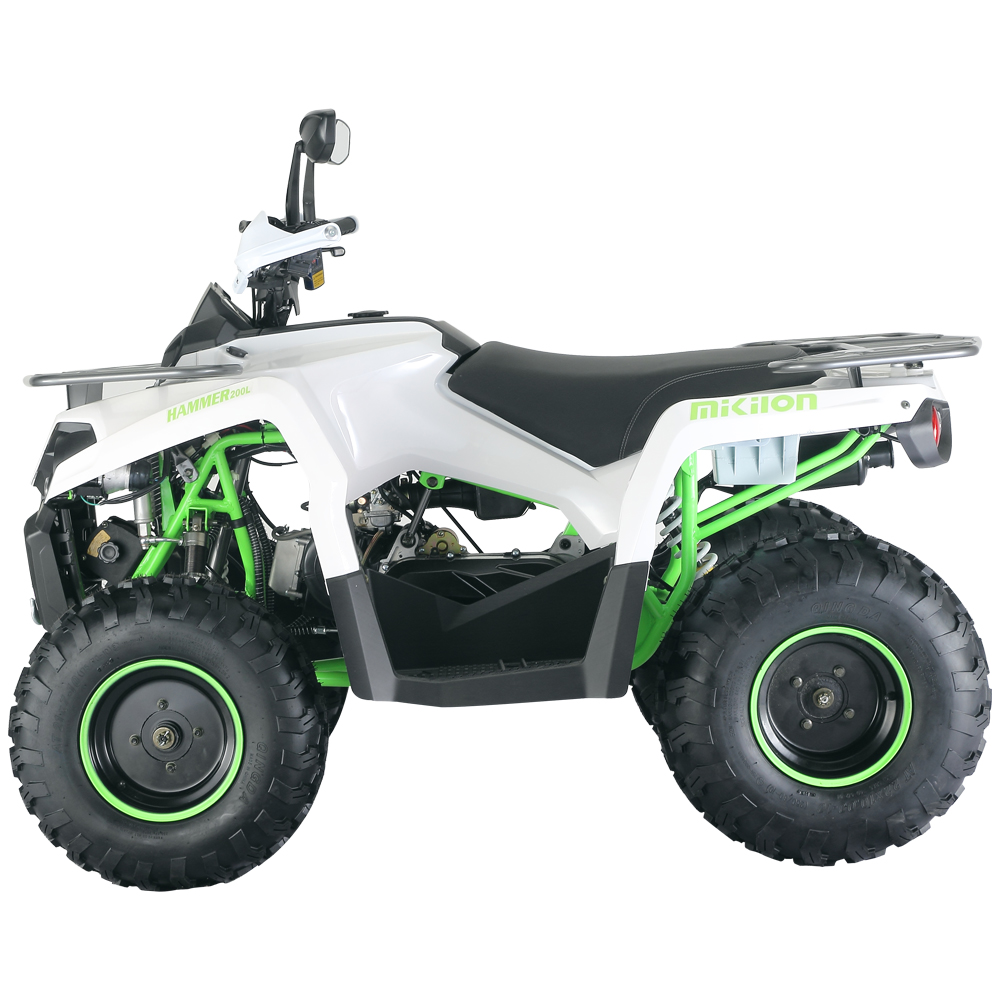

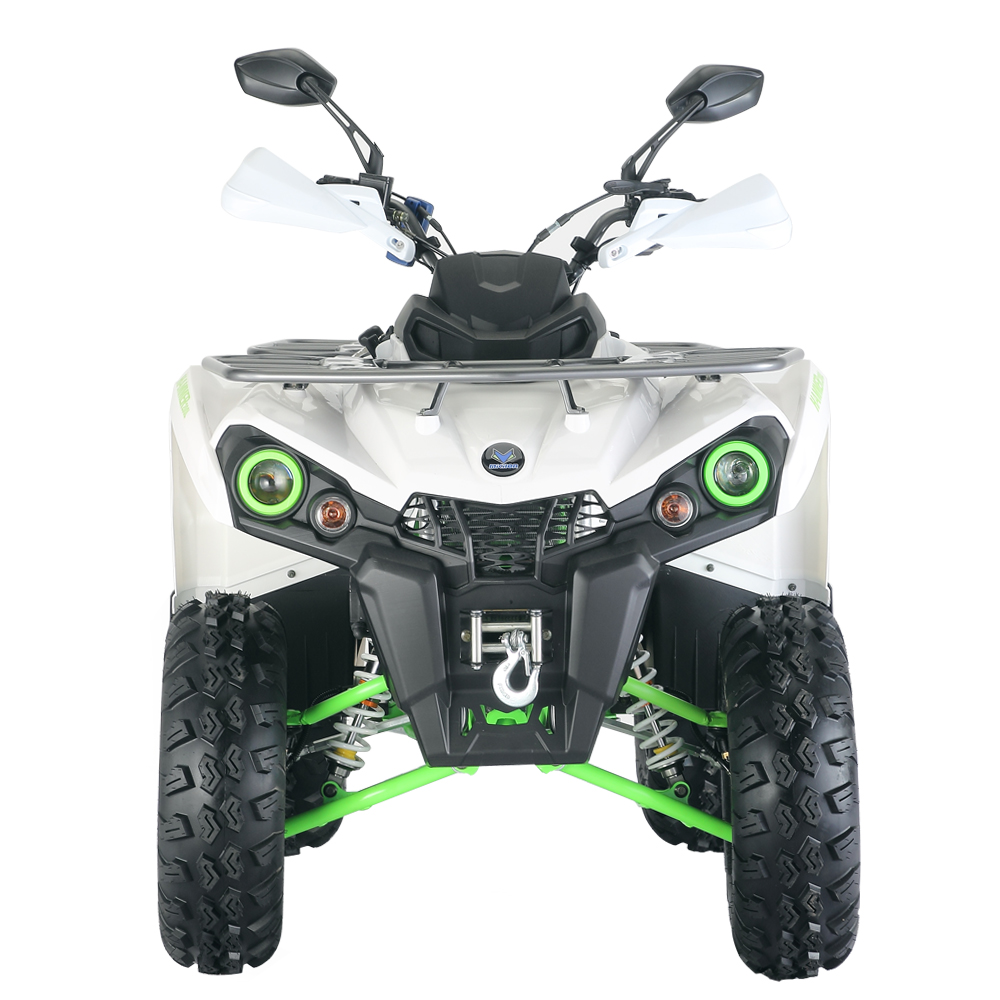

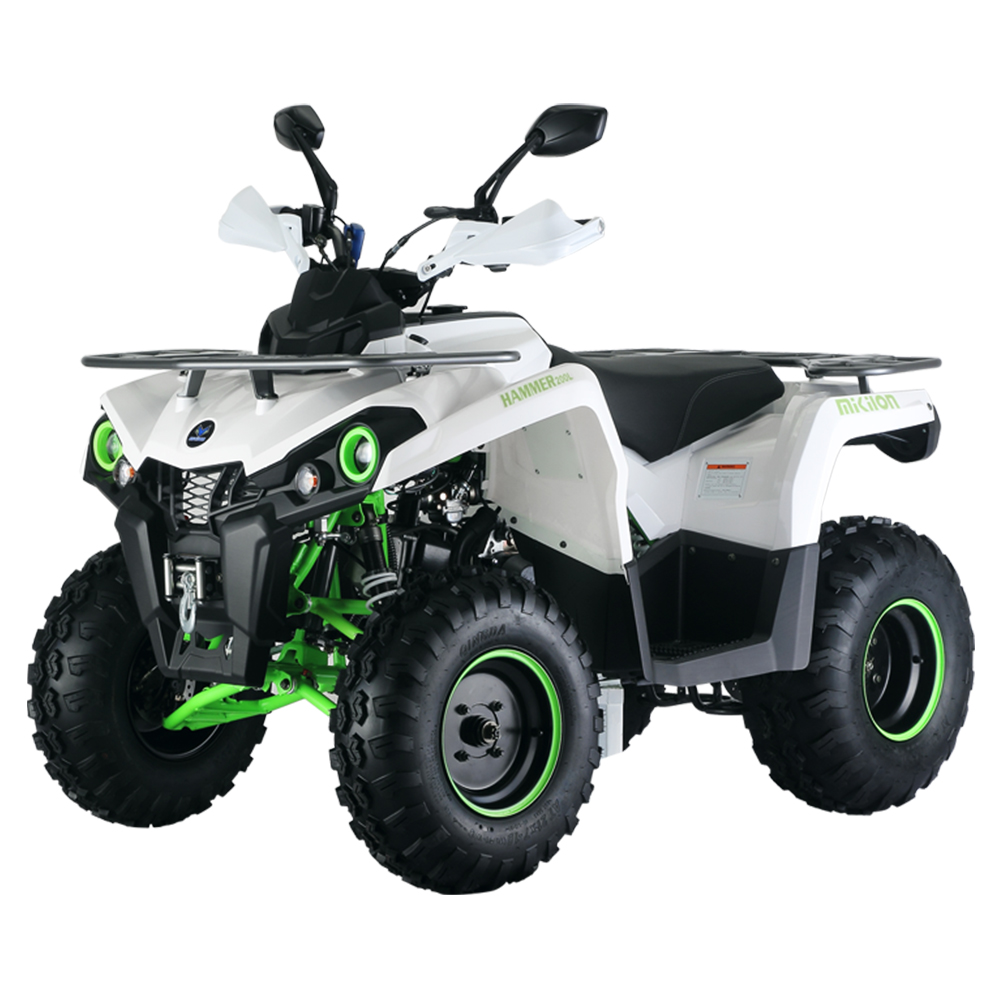

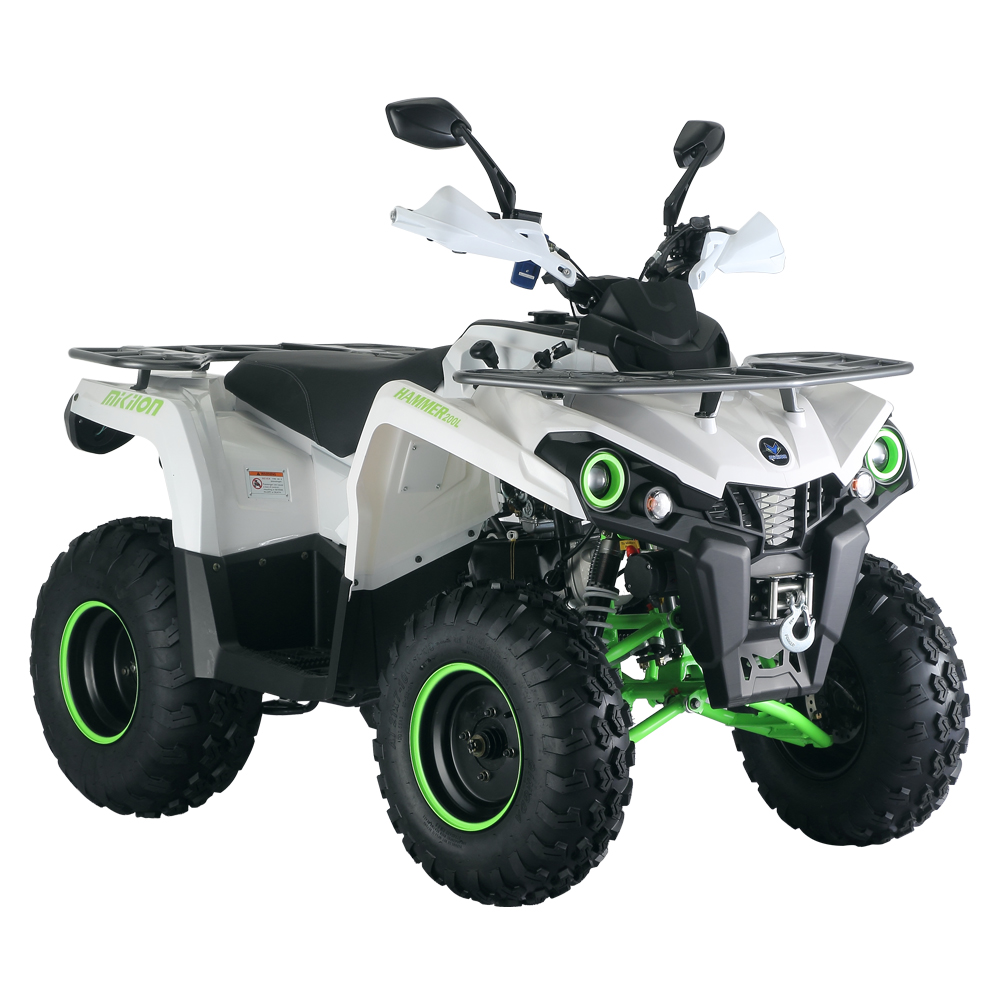

HAMMER 200

ATV(UTILITY)

SELECTED COLOR

  • White

Includes

Carbureted

200cc Engine

Automatic CVT Transmission

12'' Ground Clearance

33lb Front and Rear Rack Capacity (Total 66lb)

Dual A-Arm Front Suspension

Dual LED Front and Rear Headlights

INQUIRY
FEATURES

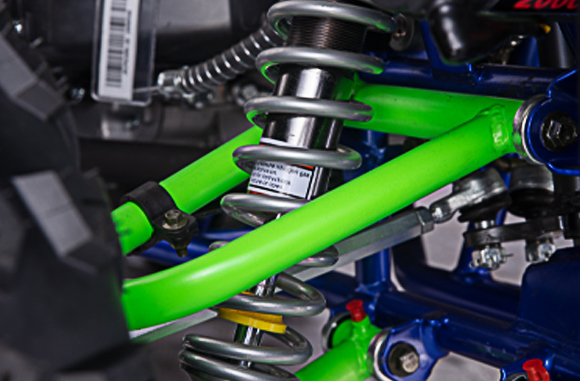

  • Dual A-arm front suspension

    Dual A-arm front suspensionDual A-arm suspension on the HAMMER 200 allows the suspension to work better by reducing bumps and improving steering.

  • Front & rear disc brakes

    Front & rear disc brakesHAMMER 200 front and rear hydraulic disc brakes provide excellent stopping power. The hydraulic braking system uses a light lever, which can be easily mastered by kids over the age of 16, ensure safe driving.

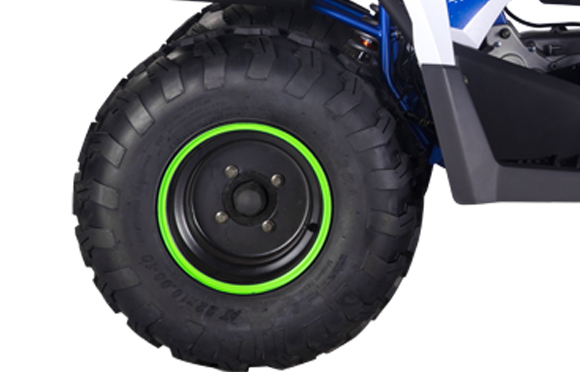

  • Wheels

    Wheels HAMMER 200 is equipped with 10-inch wheels, which can provide excellent traction and performance on different terrains, provide strong lateral support during driving, accurately feedback road information, and improve driving texture.

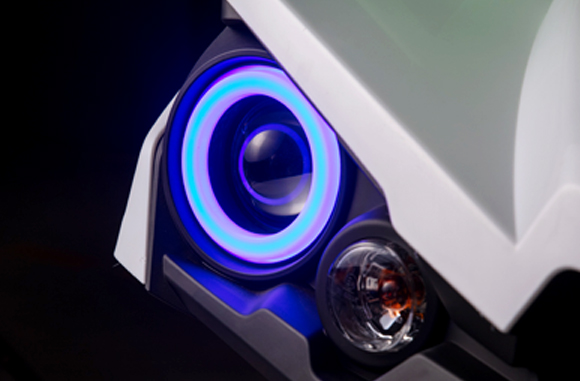

  • Dual LED front headlights

    Dual LED front headlightsThe dual LED front headlights have very strong penetrating power, which can stillprovide users with a better line of sight even when driving the machine in rainy and foggy weather.

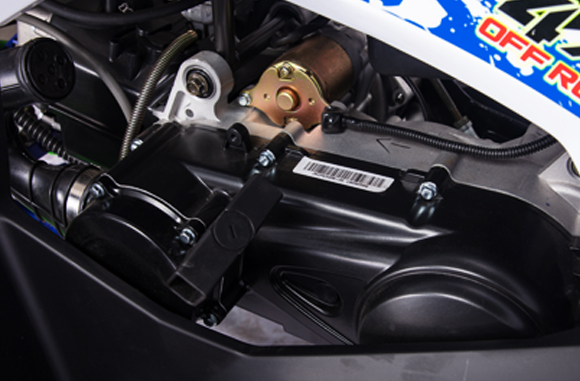

  • Engine

    Engine The 10HP engine of the HAMMER 200 can provide a maximum speed of 60KM/H, which can still maintain stability when the machine is running at high speed and bring driving fun and passion to young riders.

SPECIFICATIONS

HAMMER 200

Engine & Drivetrain

Engine typeJN1P63QMK Four-stroke Horizontal
CoolingAir
Bore and stroke62.5x57.4mm
Cylinders displacement177.3ml
Compression ratio10:1
CarburetorPD24
Max power10HP/7500rpm
Max torque10N.m/6000rpm
ClutchAutomatic
TransmissionCVT with reverse

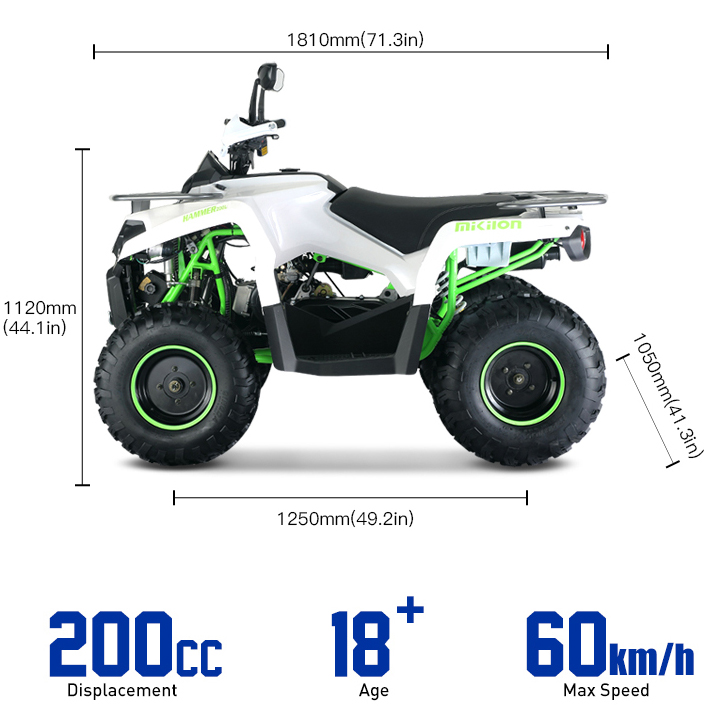

Dimensions

Vehicle size (LxWxH)

1810x1050x1120 mm (71.3x41.3x44.1 in)

Wheelbase

1250mm (49.2in)

Seat height

860mm (33.9in)

Ground clearance

305mm (12in)

Turning radius

1700mm (5.6feet)

Box size (LxWxH)

1700x1130x860 mm (66.9x44.5x33.9 in)

Dry weight

197kg(434Ib)

Box gross weight

225kg(496Ib)

Front/Rear rack capacity15kg (33lb)/15kg (33lb)
Fuel capacity

9.7L (2.6gal)

Payload capacity

100kg(220lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Macpherson independent suspension

Rear suspension

Single lndependent Suspension

Front brakes

Hydraulic disc

Rear brakes

Hydraulic disc

Front tires

23x7-10; 29 PSI

Rear tires

22x10-10; 27.5 PSl
