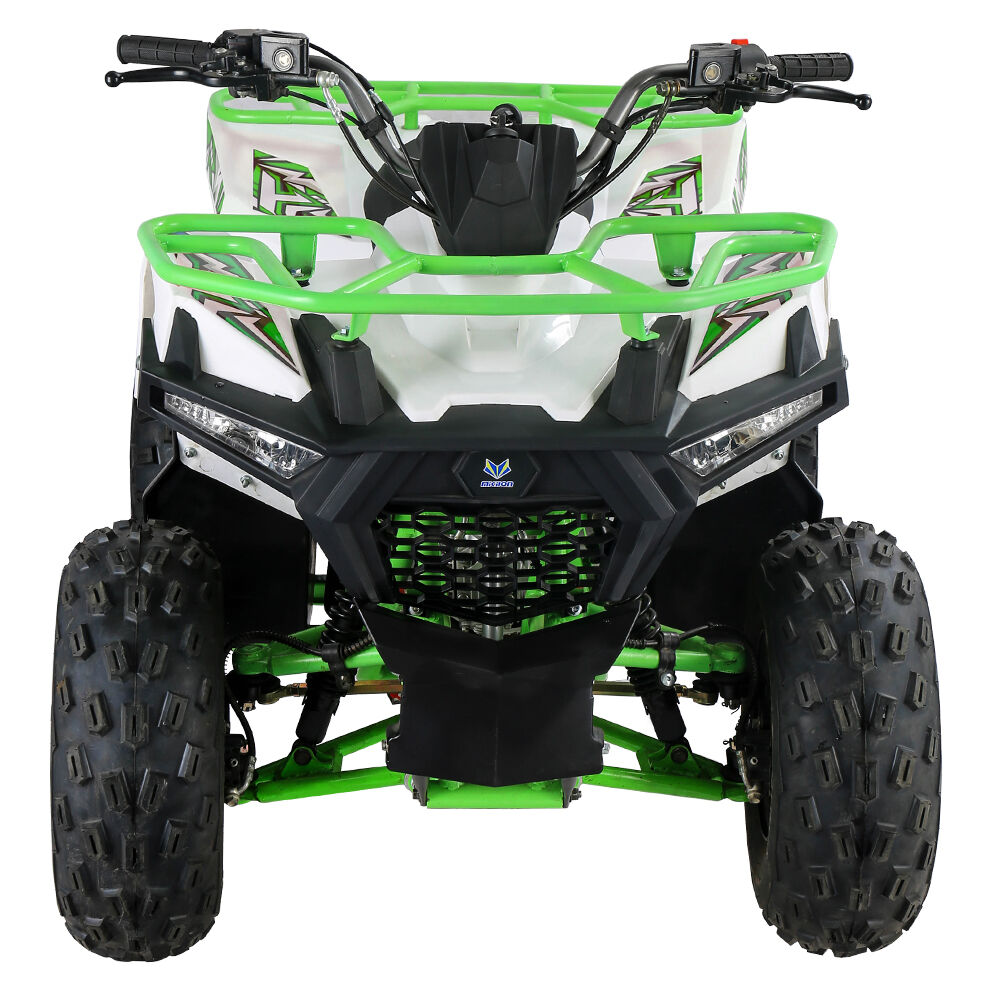

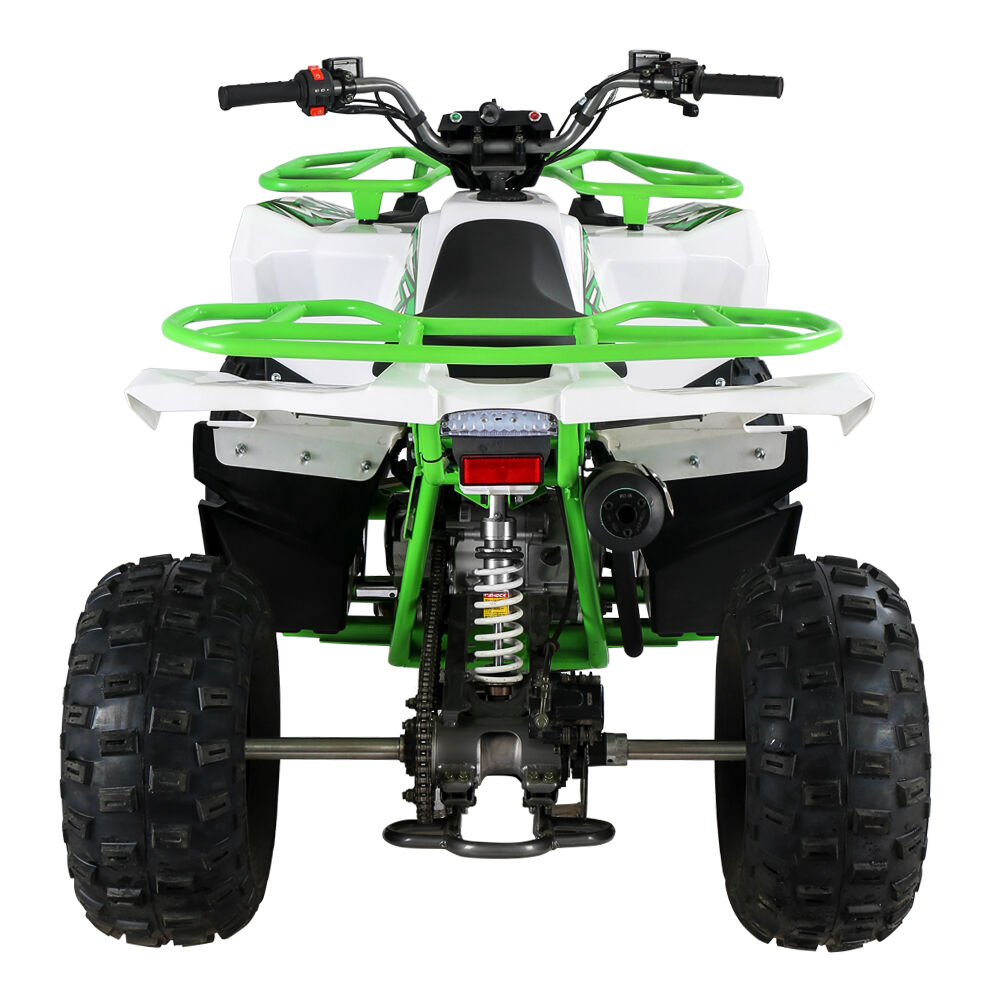

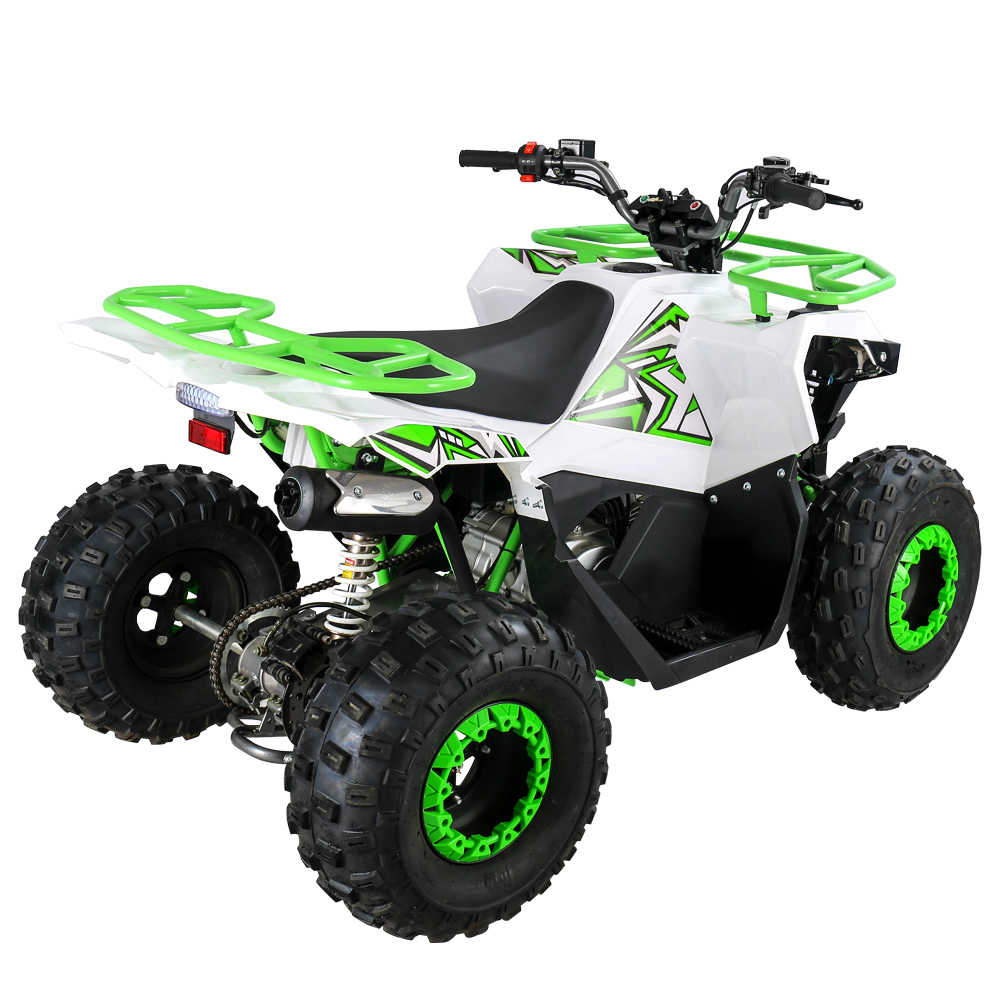

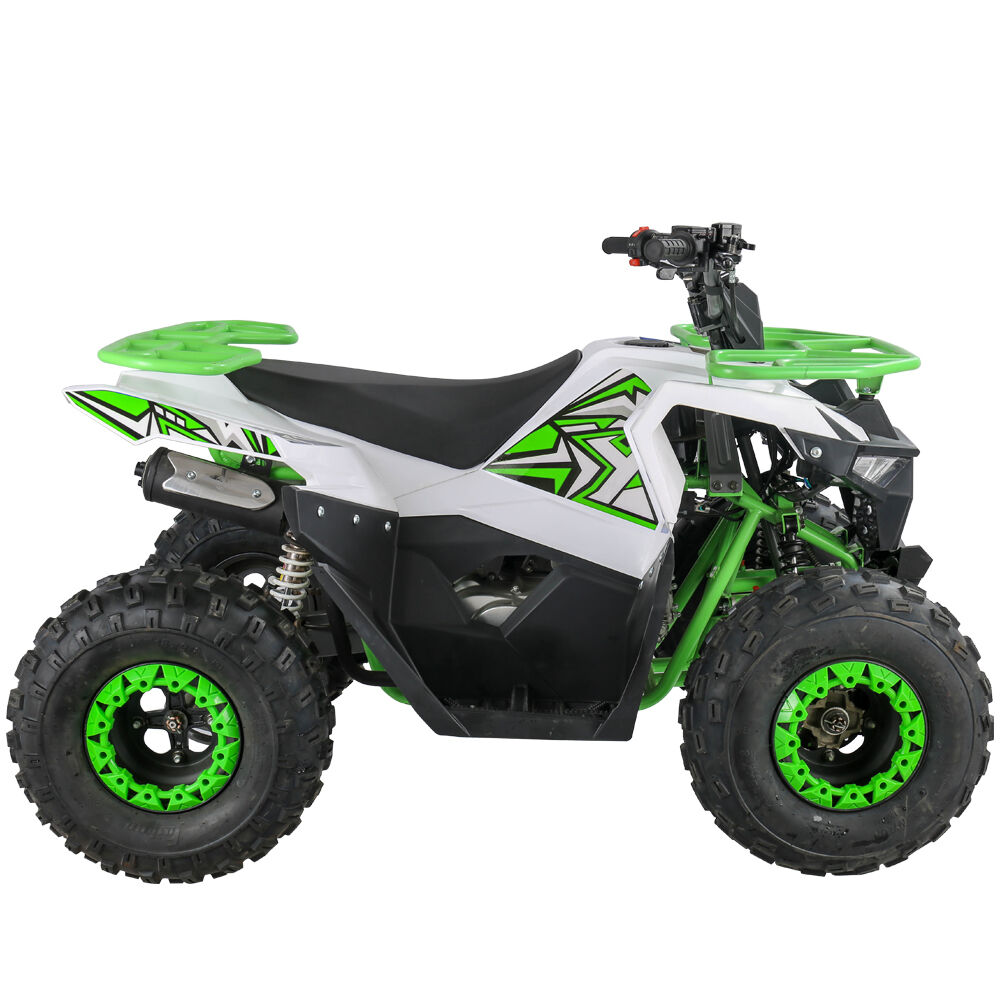

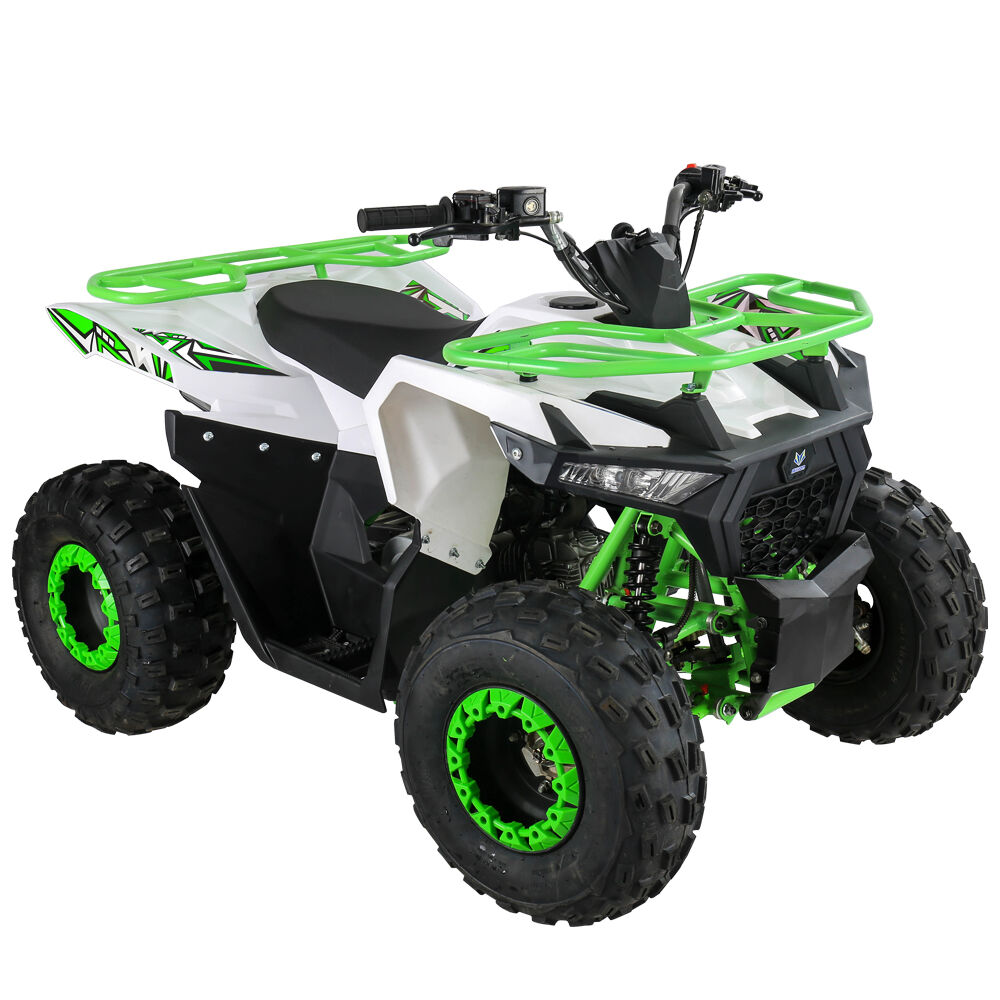

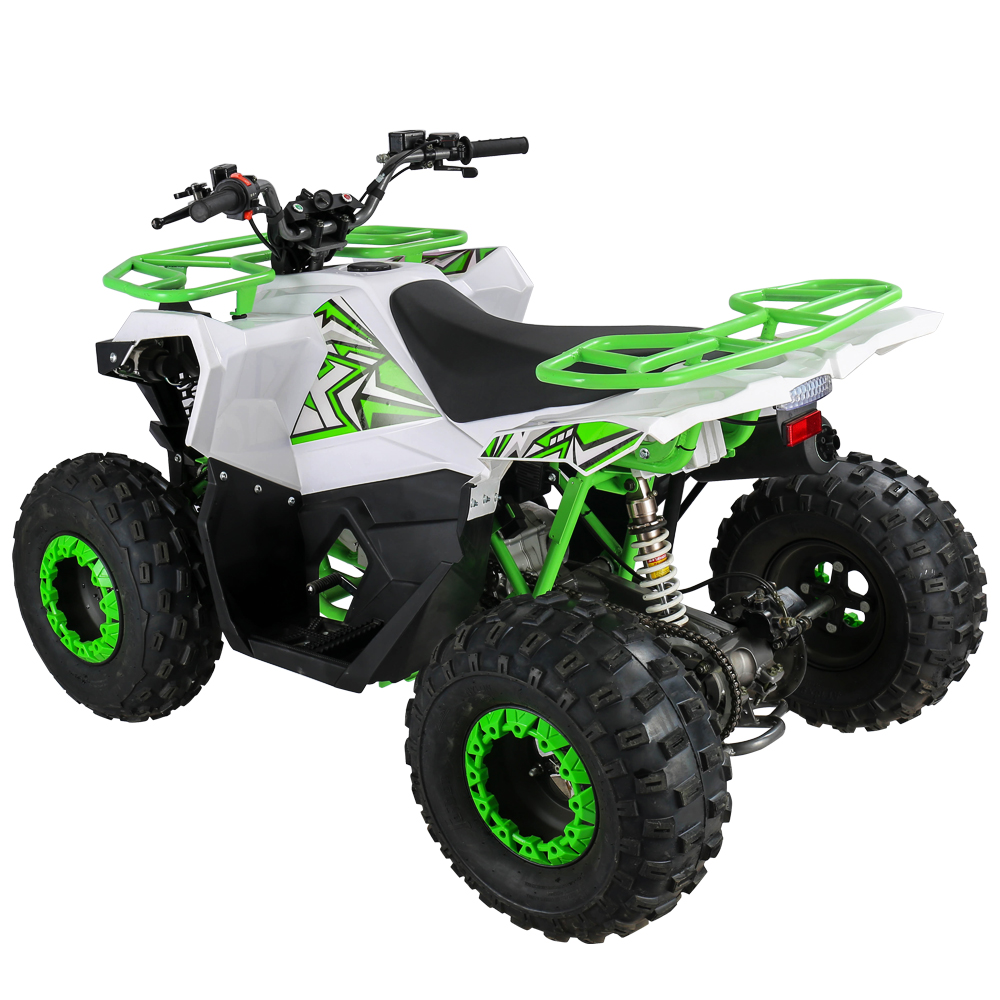

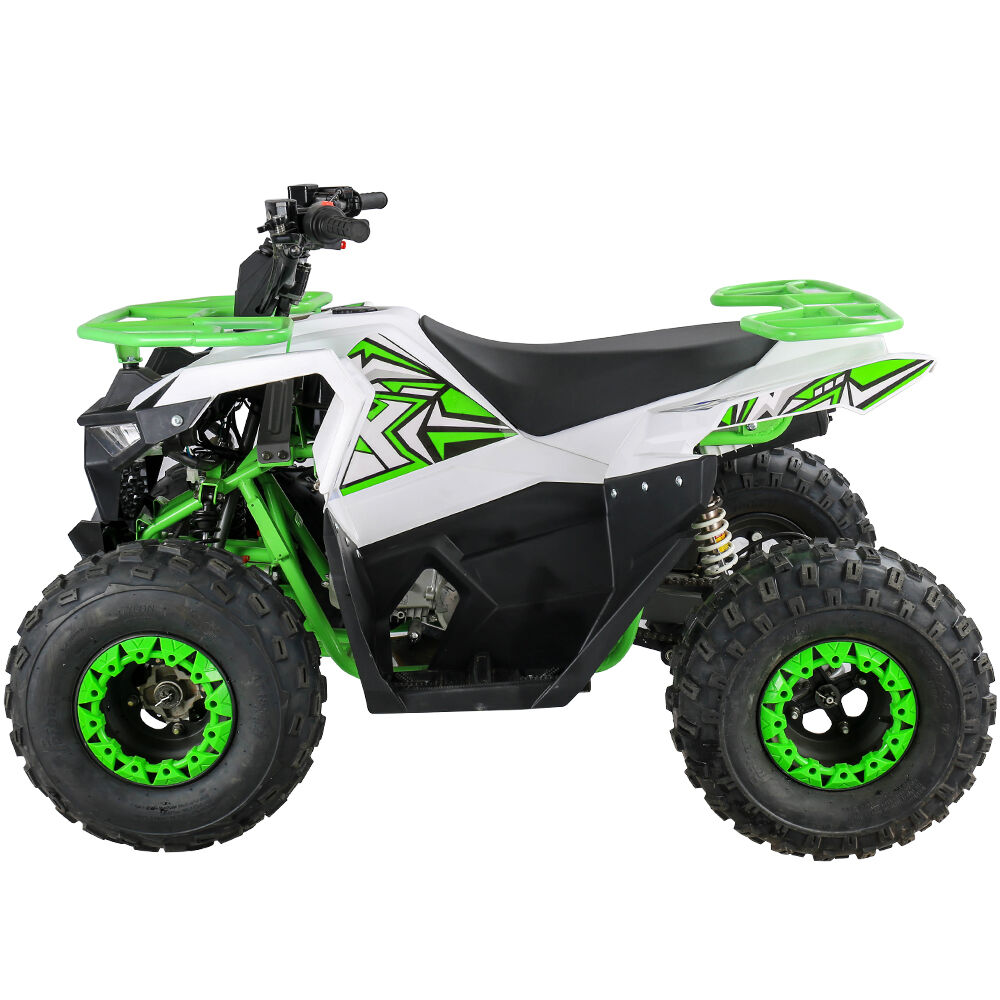

HAMMER 125

ATV(UTILITY)

SELECTED COLOR

  • White

Includes

Carbureted

125cc Engine

Dual A-Arm Front Suspension

Dual Halogen Front Headlights

INQUIRY
FEATURES
  • Dual A-arm front suspension

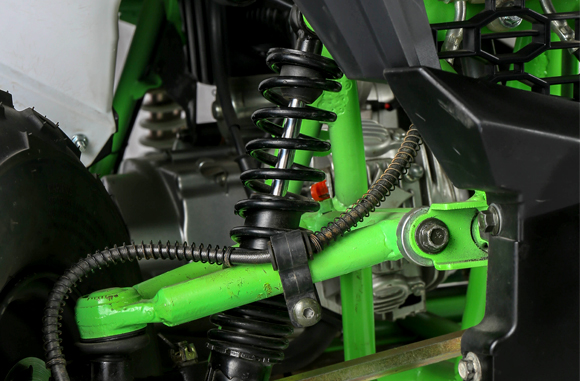

    Dual A-arm front suspensionDual A-arm suspension on the HAMMER 125 allows the suspension to work better by reducing bumps and improving steering.

  • Front & rear disc brakes

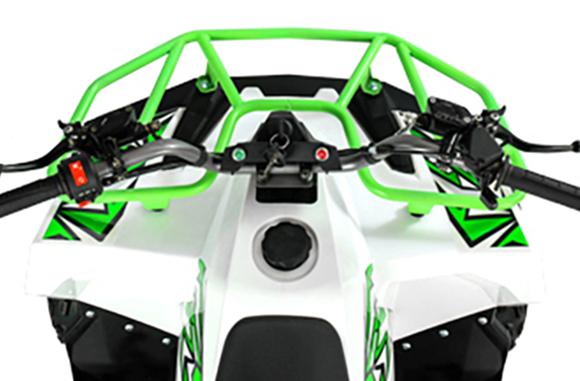

    Front & rear disc brakesHAMMER 125 front and rear hydraulic disc brakes provide excellent stopping power. The hydraulic braking system uses a light lever, which can be easily mastered by kids over the age of 10, ensure safe driving.

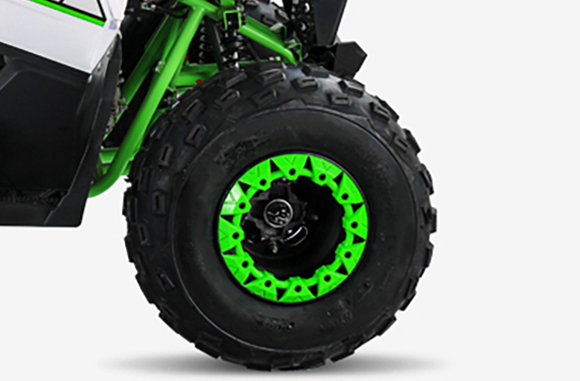

  • Wheels

    Wheels HAMMER 125 is equipped with 8-inch wheels, which can provide excellent traction and performance on different terrains, provide strong lateral support during driving, accurately feedback road information, and improve driving texture.

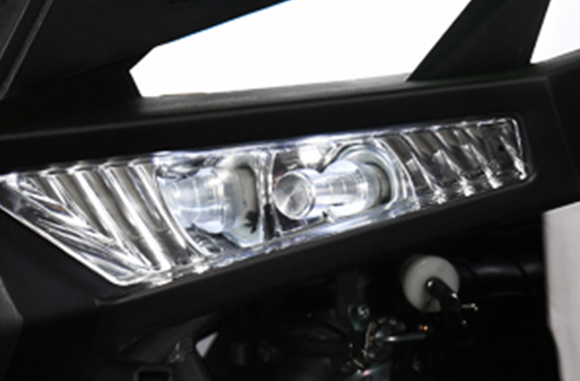

  • Dual halogen front headlights

    Dual halogen front headlightsThe dual halogen front headlights have very strong penetrating power, which can still provide users with a better line of sight even when driving the machine in rainy and foggy weather.

  • Engine

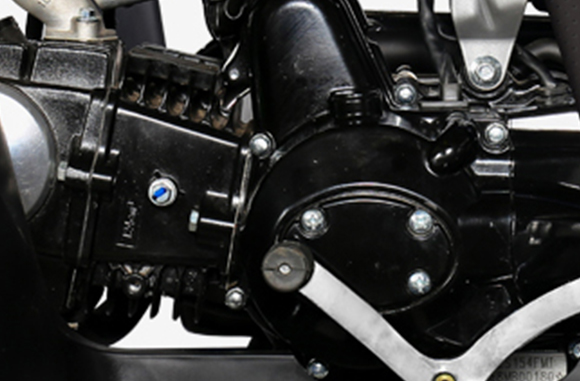

    Engine The 7.8HP engine of the HAMMER 125 can provide a maximum speed of 55KM/H, which can still maintain stability when the machine is running at high speed and bring driving fun and passion to young riders.

  • Ground clearance

    Ground clearance With 4.0 inches of ground clearance, the HAMMER 125 gives kids enough safe space to explore the fun of off-road.

SPECIFICATIONS

HAMMER 125

Engine & Drivetrain

Engine typeLX152FMI single-cylinder four-stroke
CoolingAir
Bore and stroke52.4x57mm
Cylinders displacement122.9ml
Compression ratio8.7:1
CarburetorPZ19
Max power7.8HP/7500rpm
Max torque8.8N.m/5500rpm
ClutchAutomatic
TransmissionThree-speed with reverse

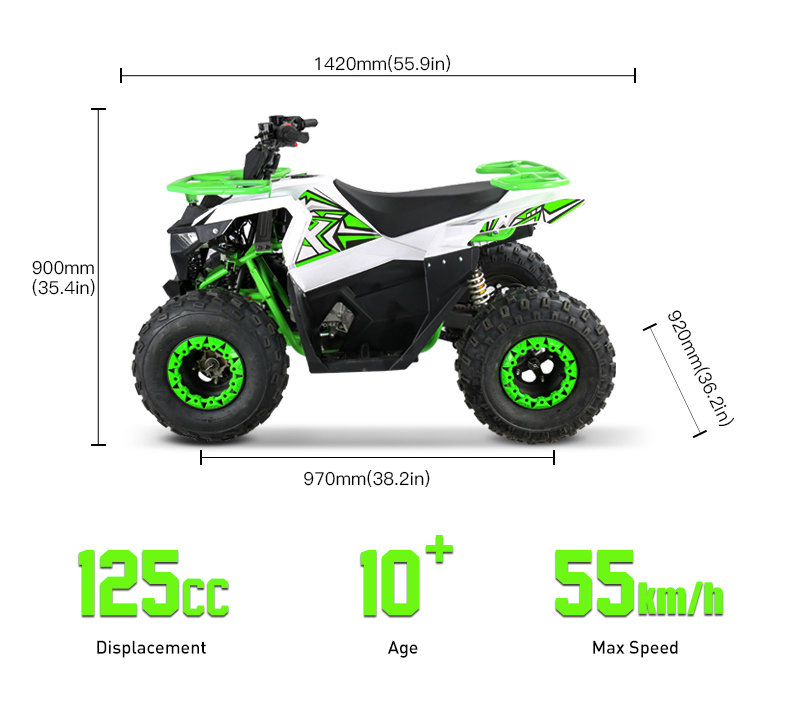

Dimensions

Vehicle size (LxWxH)

1420×920x900 mm (55.9×36.2×35 in)

Wheelbase

970mm (38.2in)

Seat height

680mm (26.8in)

Ground clearance

105mm (4.1in)

Turning radius

1900mm (6.2feet)

Box size (LxWxH)

1290x820x640mm (50.8x32.3x35.2 in)

Dry weight

110kg(242Ib)

Box gross weight

130kg(287Ib)

Front/Rear rack capacity15kg (33lb)/15kg (33lb)
Fuel capacity

7.0L (1.9gal)

Payload capacity

100kg(220lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Macpherson independent suspension
Rear suspensionSingle lndependent Suspension
Front brakesHydraulic disc
Rear brakesHydraulic disc
Front tires18x7-8; 9 PSI
Rear tires18x9-8; 9 PSl
