PENTORA 110L

ATV(SPORT)

SELECTED COLOR

  • Blue

Includes

Electronic Fuel Injection (EFI)

110cc Engine

Automatic CVT Transmission

Single A-Arm Front Suspension

Dual Halogen Front Headlights

INQUIRY
FEATURES

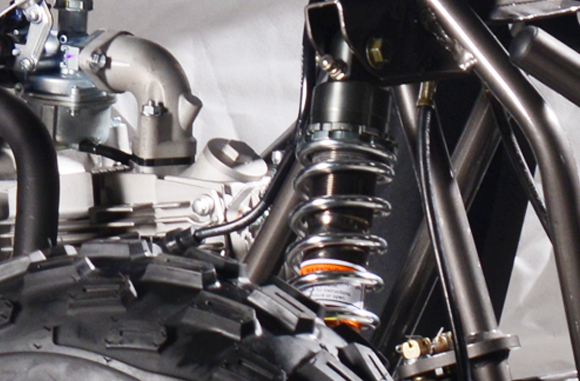

  • Single A-arm  front suspension

    Single A-arm front suspensionSingle A-arm suspension on the PENTORA 110L allows the suspension to work better by reducing bumps and improving steering, the maximum.

  • Fuel tank

    Fuel tankThe large 1.7-gallon fuel tank ensures that riders can enjoy the moment of passion.

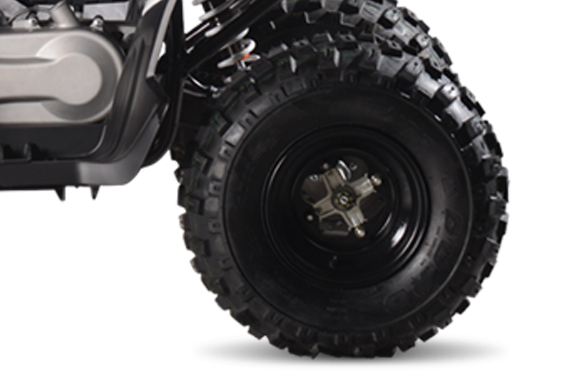

  • Wheels

    Wheels PENTORA 110L equips 8-inch front and rear wheels, which can provide excellent traction and performance on different terrains, provide strong lateral support during driving, accurately feedback road information, and improve driving texture.

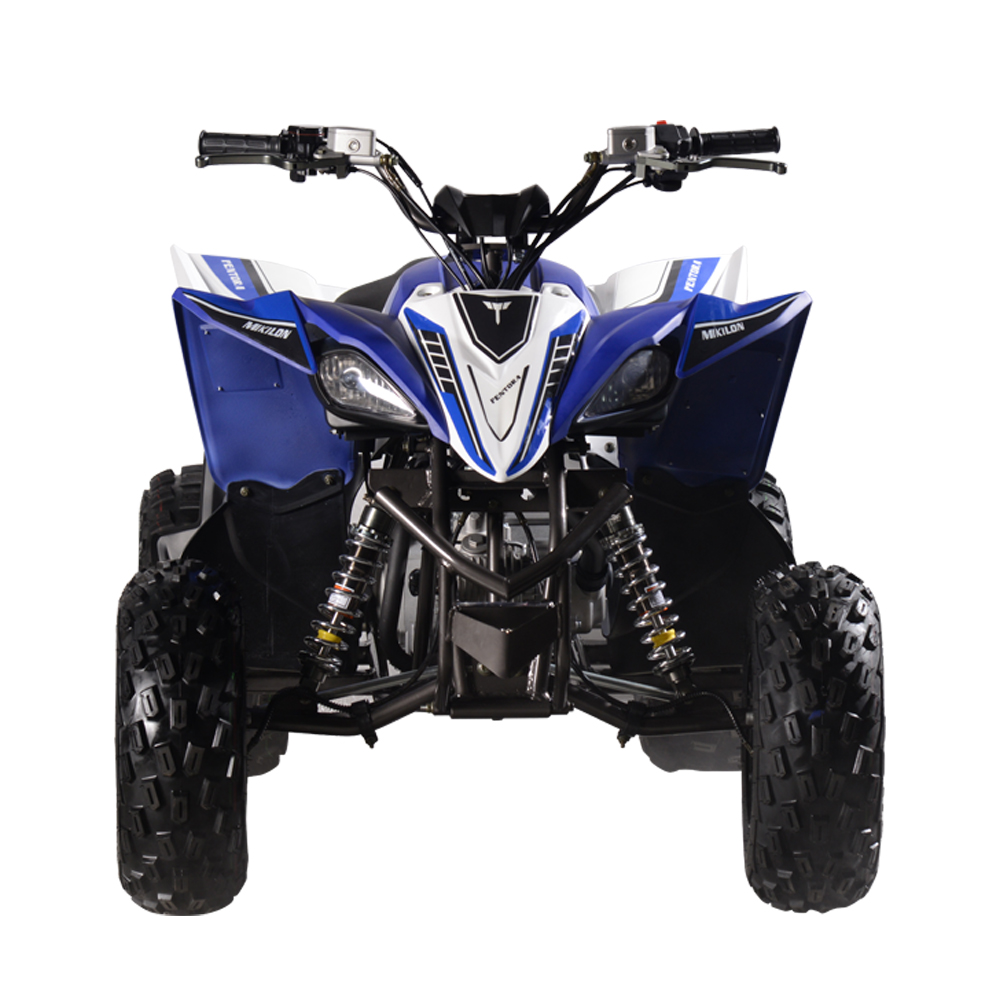

  • Dual halogen front headlights

    Dual halogen front headlightsThe dual halogen headlights in the shape of ''fox eye'' are full of combat effectiveness andhave very strong penetrating power,whichcan still provide riders with a better line ofsight even when driving the machine in rainyand foggy weather.

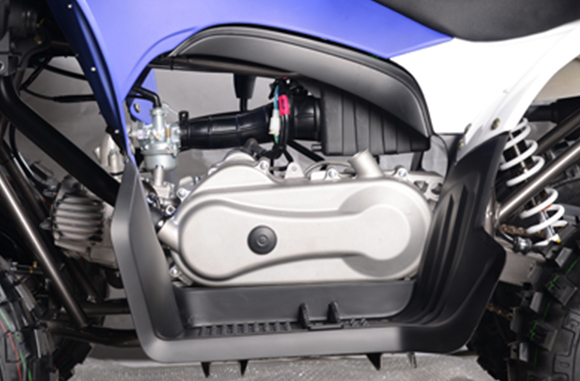

  • Engine

    Engine The 5.3HP engine of the PENTORA 110L can provide a maximum speed of 50KM/H, which can still maintain stability when the machine is running at high speed and bring driving fun and passion to riders.

SPECIFICATIONS

PENTORA 110L

Engine & Drivetrain

Engine typeJN1P52FMH Single cylinder, Four-stroke
CoolingAir
Bore and stroke52.4x51.8mm
Cylinders displacement111.6ml
Compression ratio9.4:1
CarburetorPZ19/ROJO EFI
Max power5.3HP/7500rpm
Max torque6.8N.m/6000rpm
ClutchDry hoof block automatic centrifugal
TransmissionChain drive

Dimensions

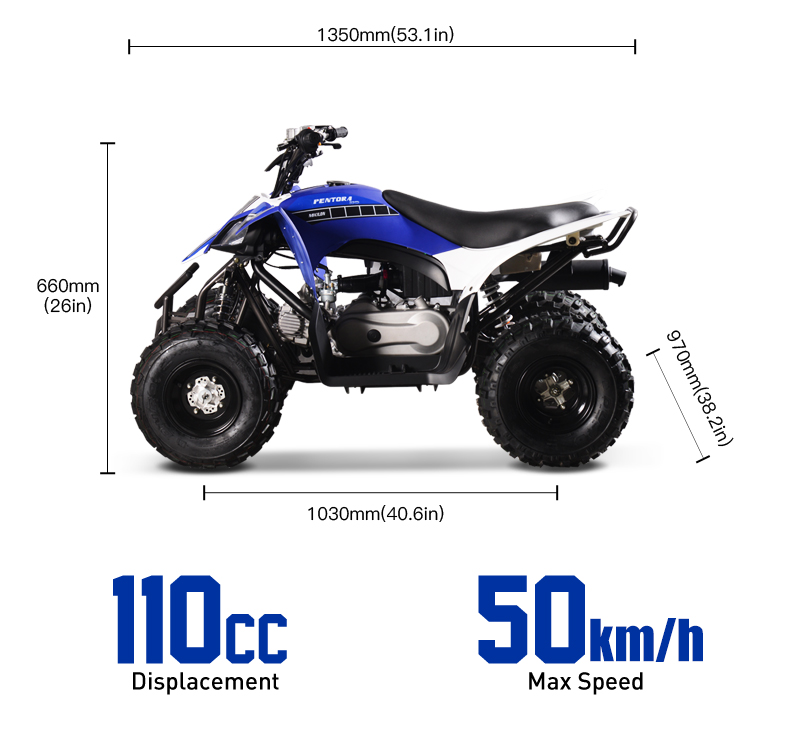

Vehicle size (LxWxH)

1350x970x660mm (53.1x38.2x26in)

Wheelbase

1030mm (40.6in)

Seat height

740mm (29.1in)

Ground clearance

105mm (4.13in)

Turning radius

1900mm (6.2feet)

Box size (LxWxH)

1540x980x1050mm (60.6x38.6x41.3in)

Dry weight

125kg(275.6Ib)

Box gross weight

148kg(326.3Ib)

Fuel capacity

6.5L (1.7gal)

Payload capacity

82kg(180.8lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Hydraulic damping shock absorber
Rear suspensionHydraulic damping shock absorber
Front brakesHydraulic disc brake
Rear brakesHydraulic disc brake
Front tires18x7-8; 9 PSI
Rear tires18x9-8; 9 PSl
