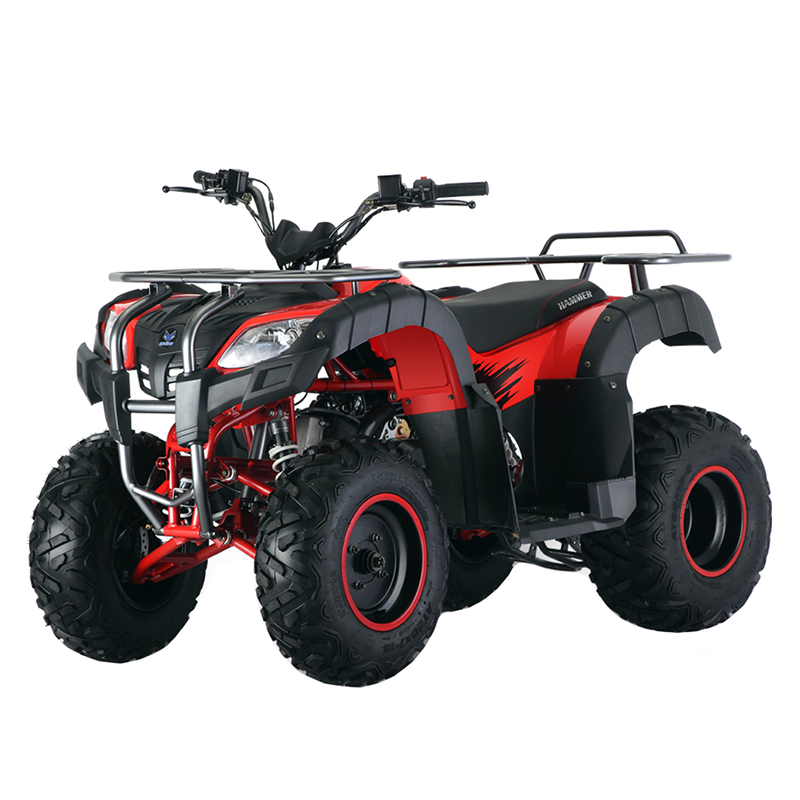

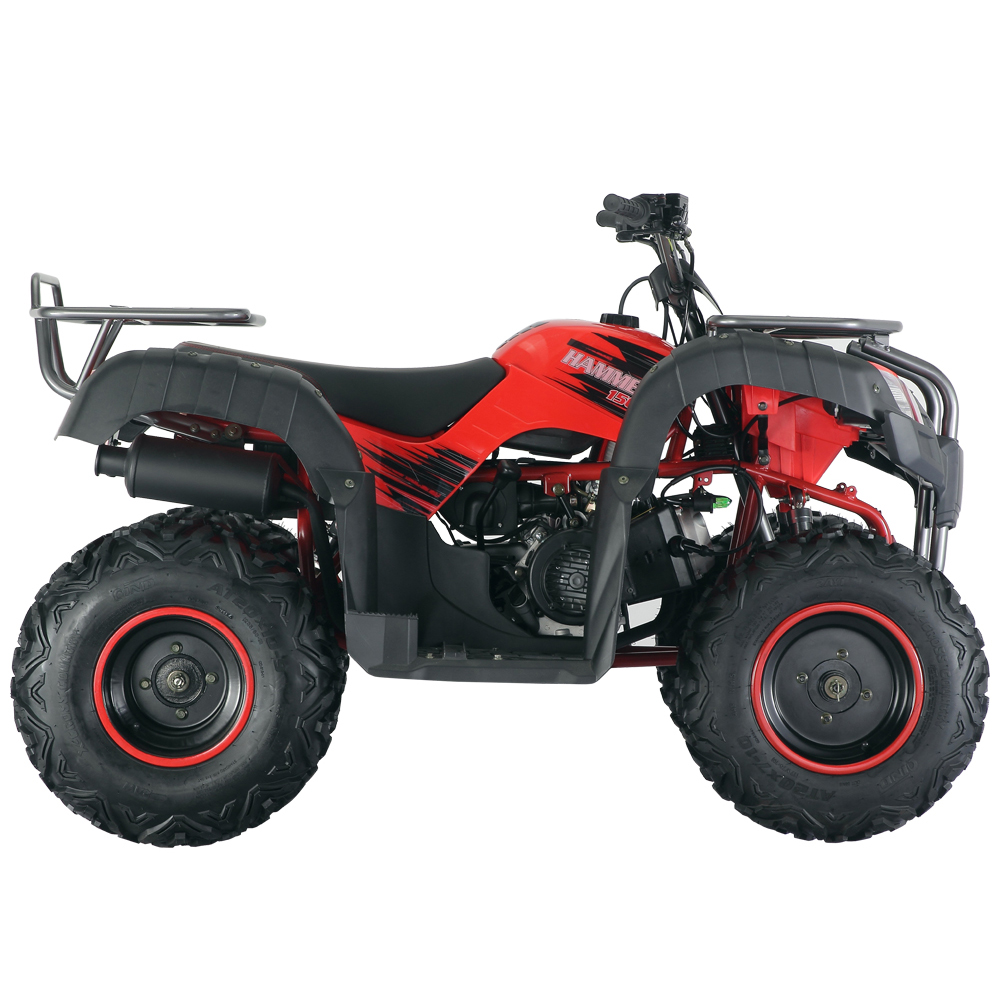

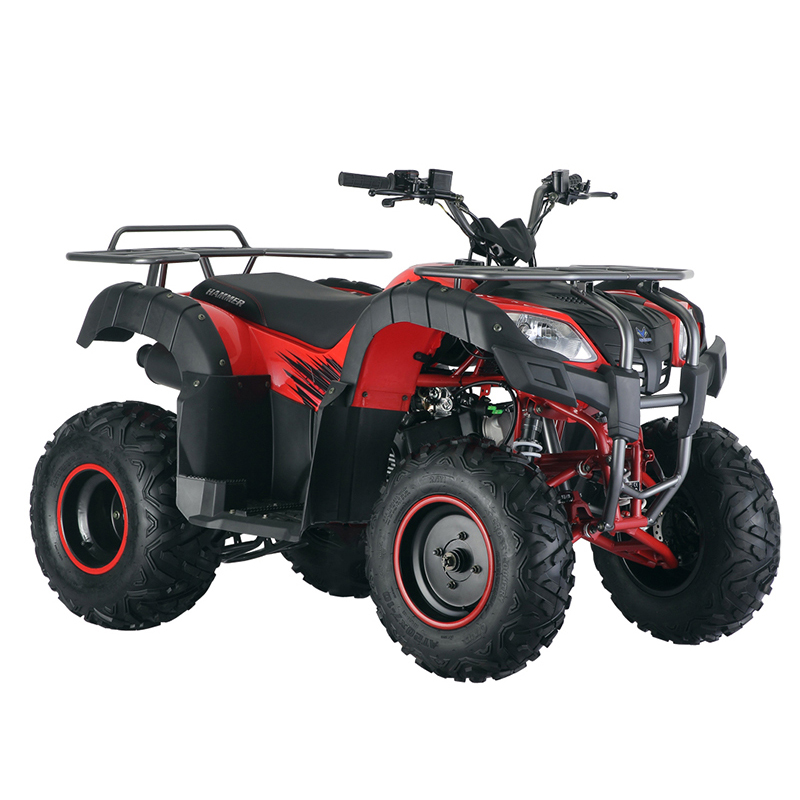

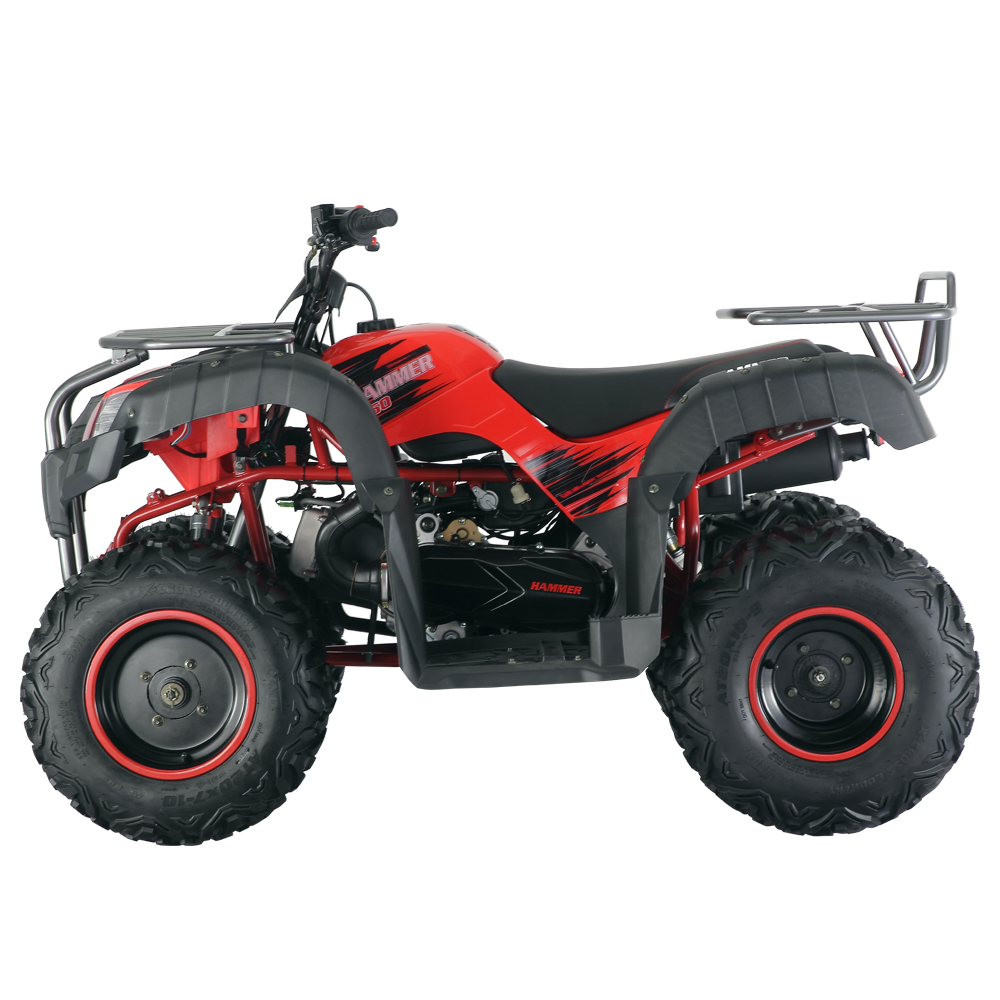

HAMMER 150

ATV(UTILITY)

SELECTED COLOR

  • Red

Includes

Carbureted

150cc Engine

Automatic CVT Transmission

6.5'' Ground Clearance

33lb Front and Rear Rack Capacity (Total 66lb)

Dual A-Arm Front Suspension

Dual Halogen Front and Rear Headlights

INQUIRY
FEATURES

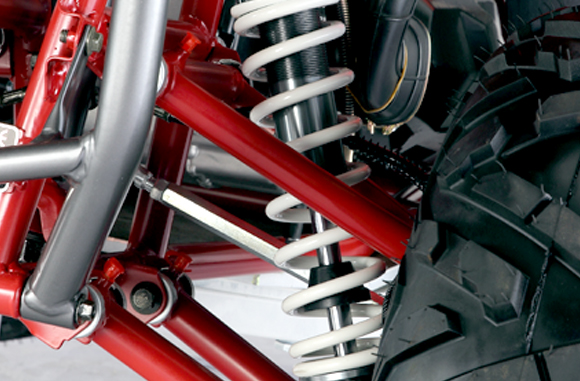

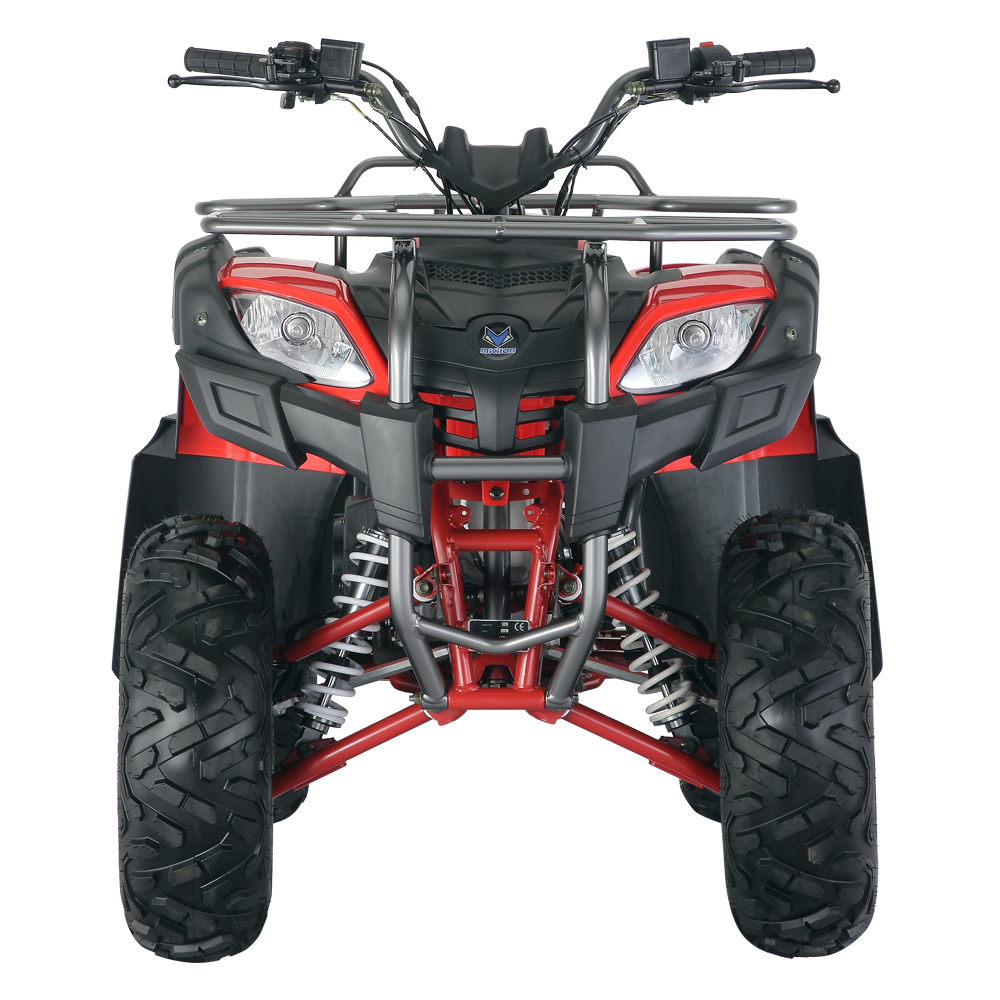

  • Dual A-arm front suspension

    Dual A-arm front suspensionDual A-arm suspension on the HAMMER 125 allows the suspension to work better by reducing bumps and improving steering.

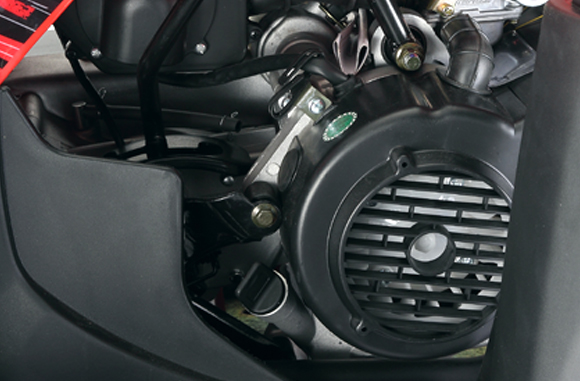

  • Engine

    EngineThe 8.1HP engine of the HAMMER 150 can provide a maximum speed of 55KM/H, which can still maintain stability when the machine is running at high speed and bring driving fun and passion to young riders.

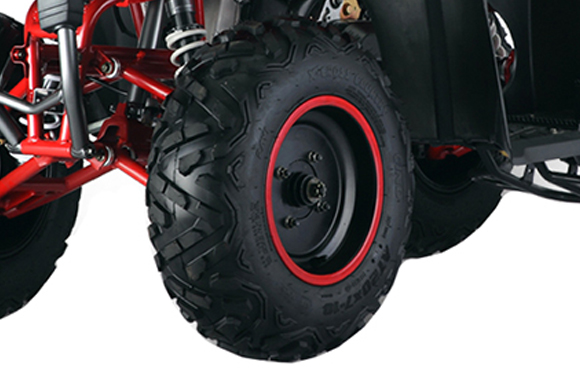

  • Wheels

    Wheels HAMMER 150 equipped 10-inch front and 9-inch rear wheels, which can provide excellent traction and performance on different terrains, provide strong lateral support during driving, accurately feedback road information, and improve driving texture.

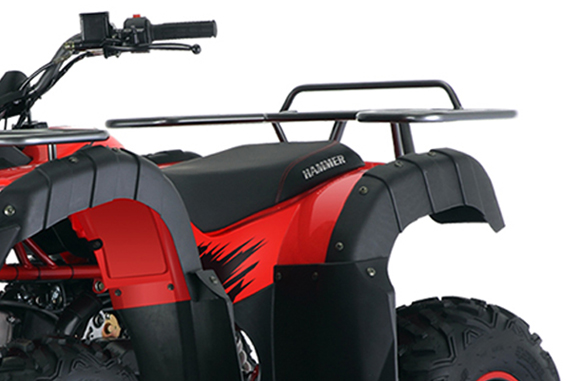

  • Front and rear steel racks

    Front and rear steel racksFront and rear steel racks allow the HAMMER 150 to haul max 30kg of strapped down cargo at the front and rear of the machine.

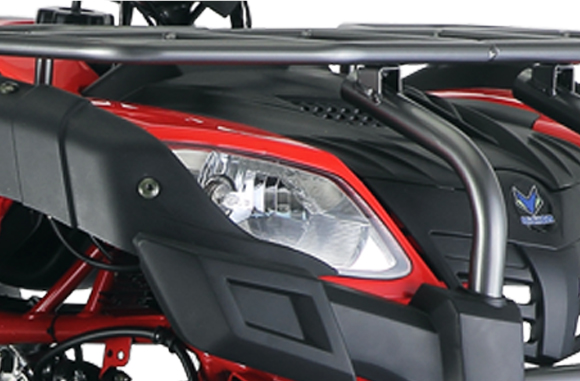

  • Dual halogen front headlights

    Dual halogen front headlightsThe dual halogen front headlights have very strong penetrating power, which can still provide users with a better line of sight even when driving the machine in rainy and foggy weather.

SPECIFICATIONS

HAMMER 150

Engine & Drivetrain

Engine type1P57QMJ Four-stroke Horizontal
CoolingAir
Bore and stroke57.4x57.8mm
Cylinders displacement149.6ml
Compression ratio10.3:1
CarburetorPD24J
Max power801HP/7500rpm
Max torque8.6N.m/5500rpm
ClutchAutomatic
TransmissionCVT with reverse

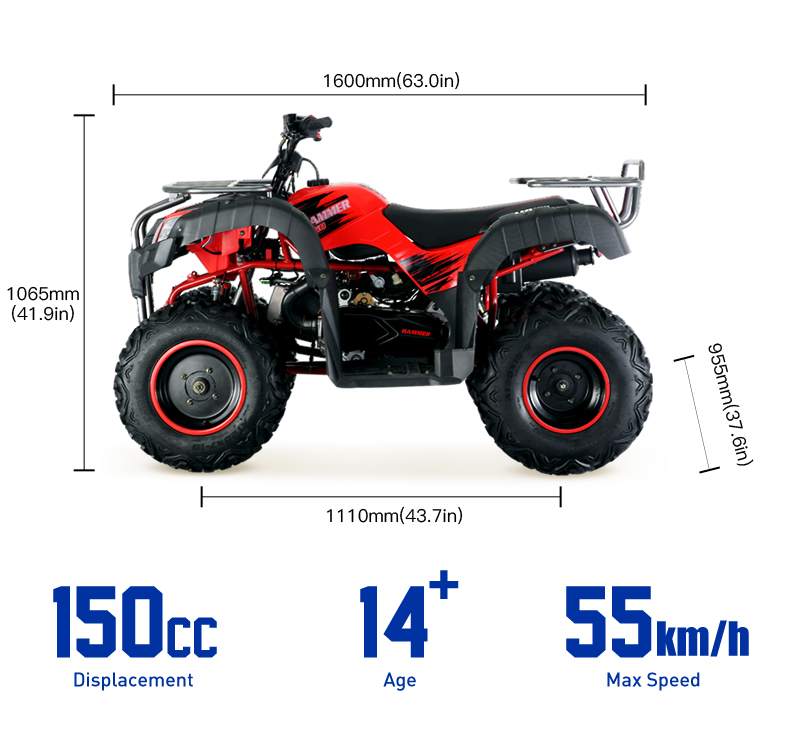

Dimensions

Vehicle size (LxWxH)

1600x955x1065 mm (63.0x37.6x41.9 in)

Wheelbase

1110mm (43.7in)

Seat height

780mm (30.7in)

Ground clearance

155mm (6.1in)

Turning radius

1900mm (6.2feet)

Box size (LxWxH)

1460x880x840 mm (57.5x34.6x33.1 in)

Dry weight

159kg(351Ib)

Box gross weight

187kg(412Ib)

Front/Rear rack capacity15kg (33lb)/15kg (33lb)
Fuel capacity

9.0L (2.4gal)

Payload capacity

100kg(220lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Macpherson independent suspension
Rear suspensionSingle lndependent Suspension
Front brakesHydraulic disc
Rear brakesHydraulic disc
Front tires20x7-10; 9 PSI
Rear tires20x10-9; 9 PSl
