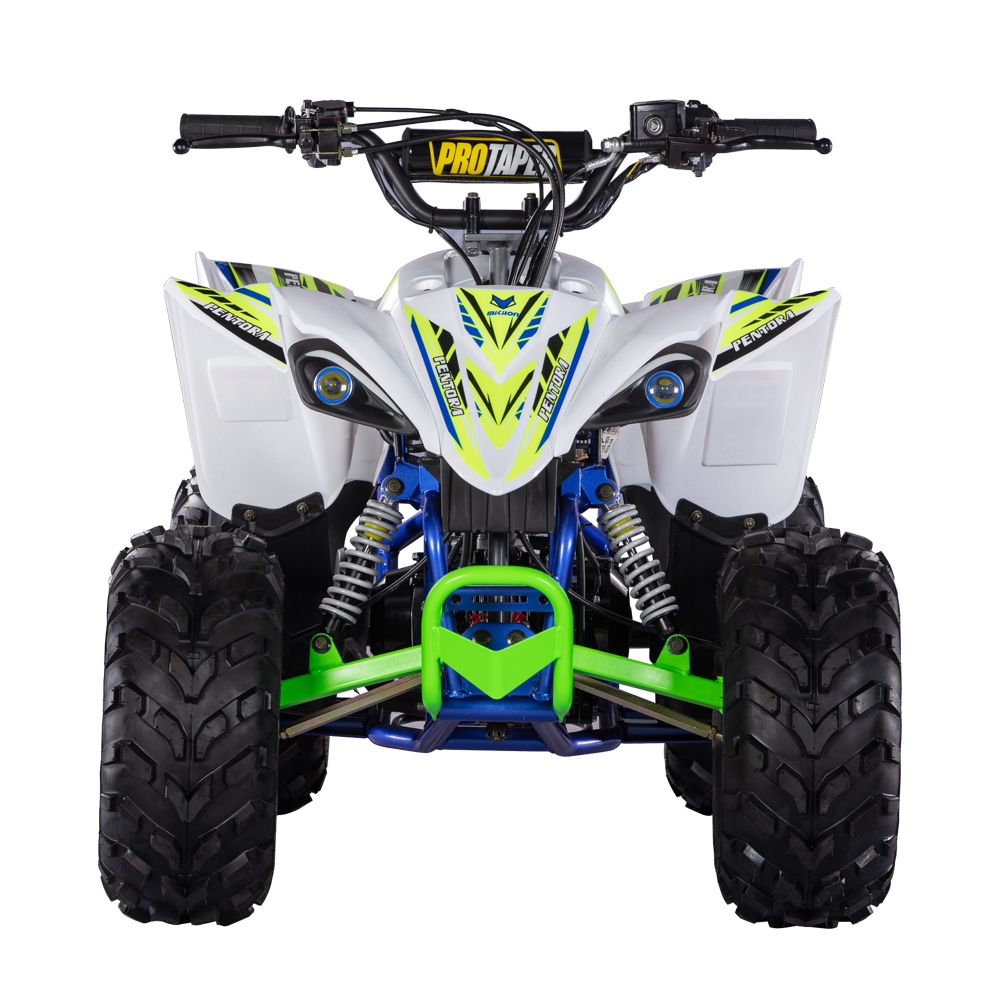

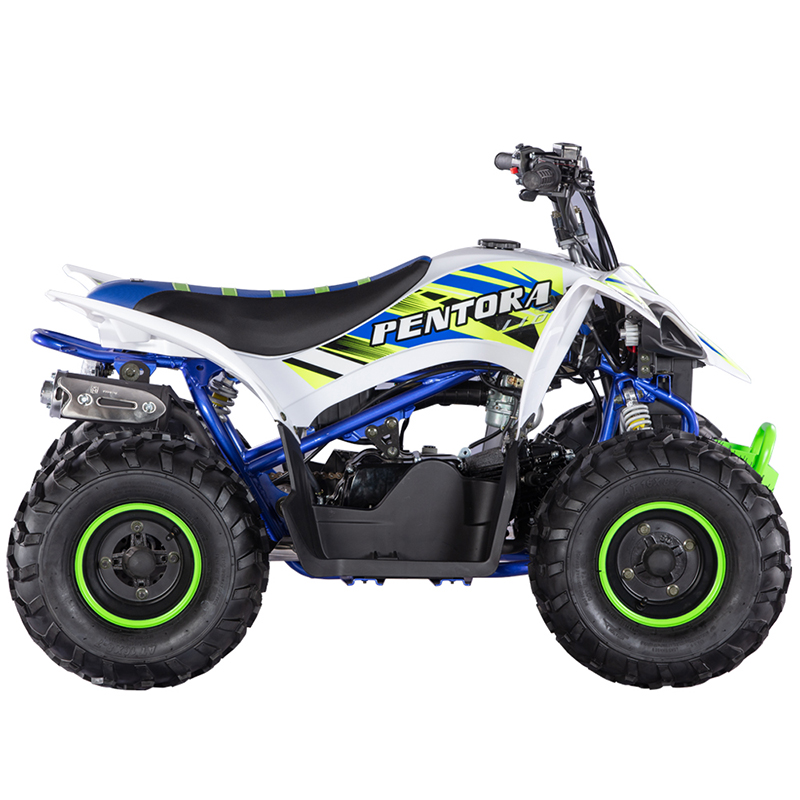

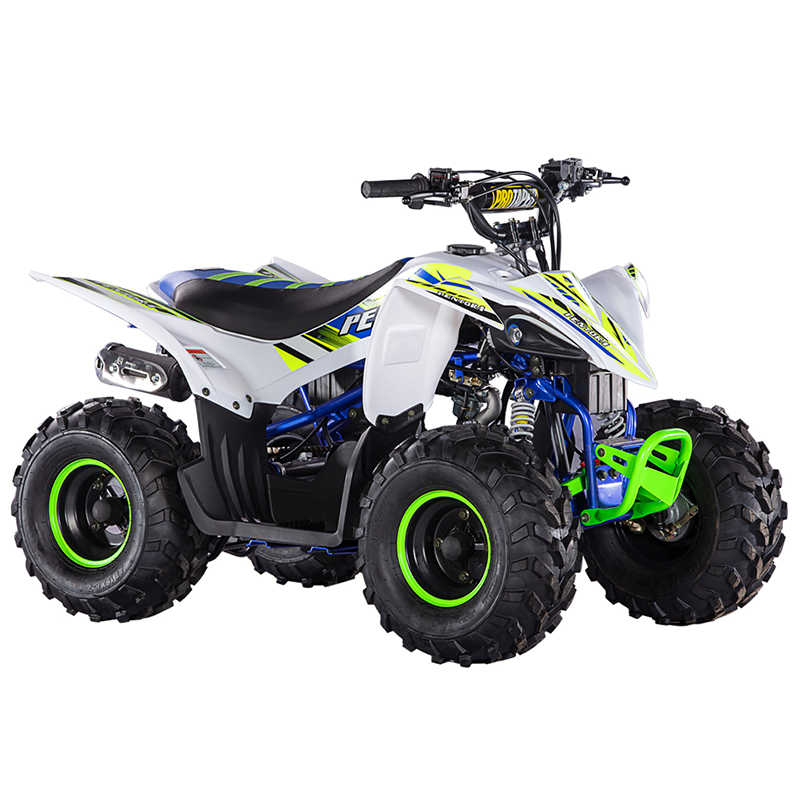

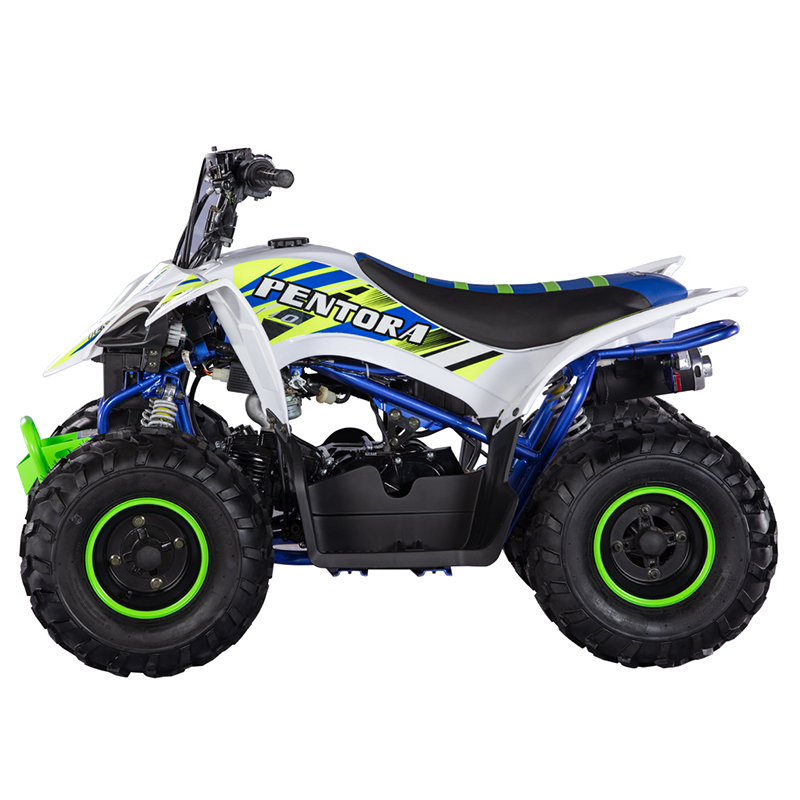

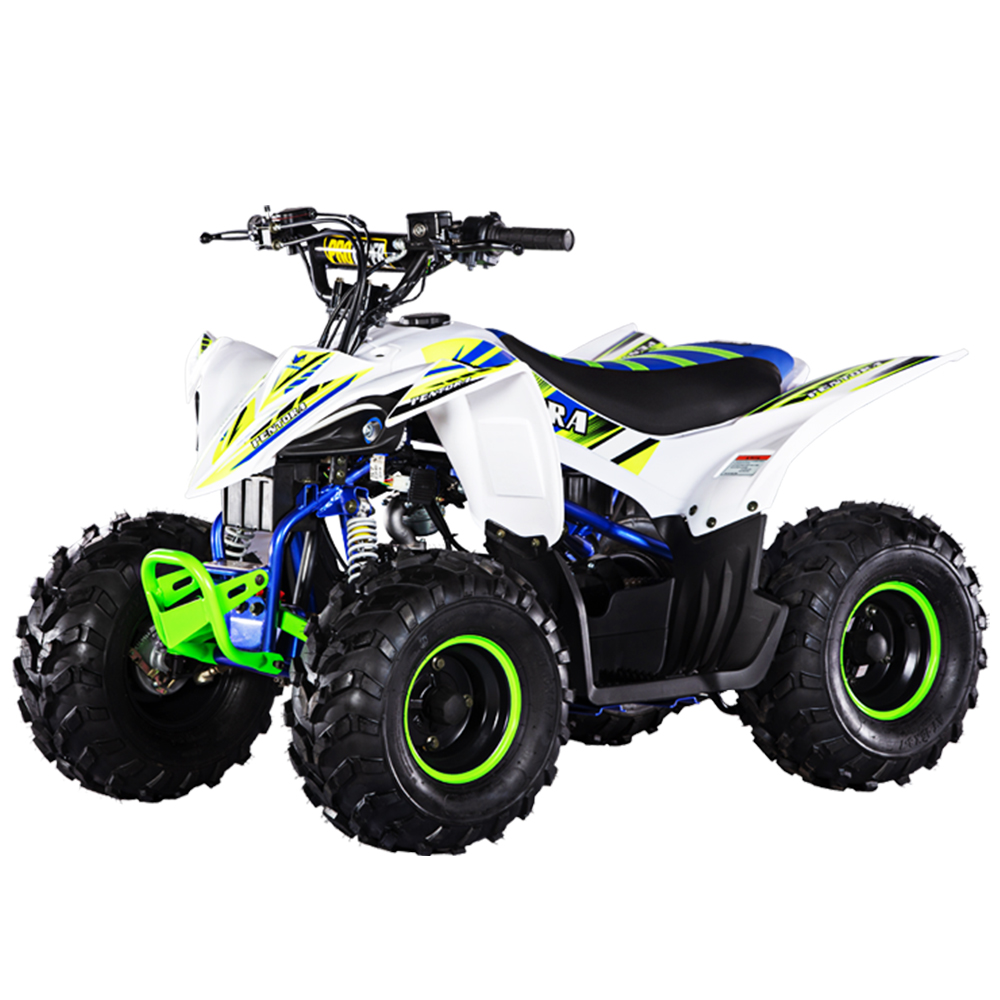

PENTORA 110

ATV(SPORT)

SELECTED COLOR

  • White

Includes

Carbureted

110cc Engine

Single A-Arm Front Suspension

Dual Halogen Front Headlights

INQUIRY
FEATURES

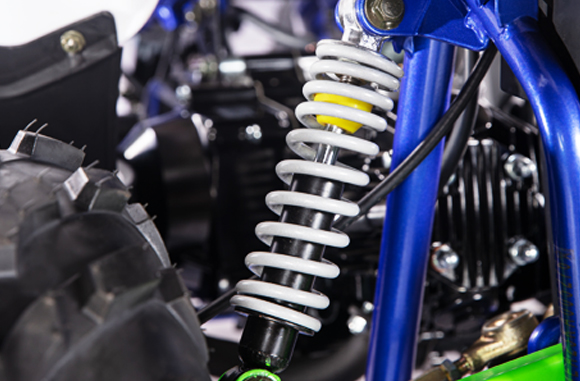

  • Single A-arm front suspension

    Single A-arm front suspensionPENTORA 110 adopts a single A-arm structure, which is flexible in control and stable in turning, ensuring young riders can control freely in a safe situation.

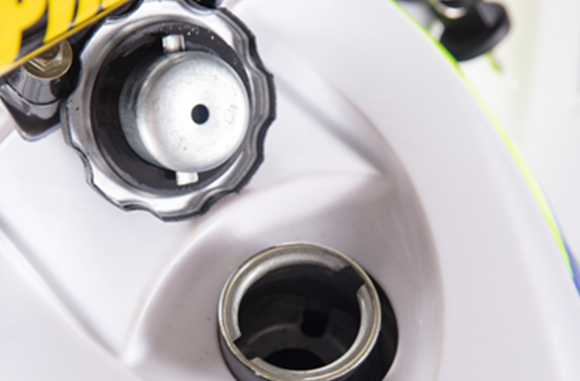

  • Fuel tank

    Fuel tankThe 1.3-gallon fuel tank ensures that riders can enjoy the moment of passion.

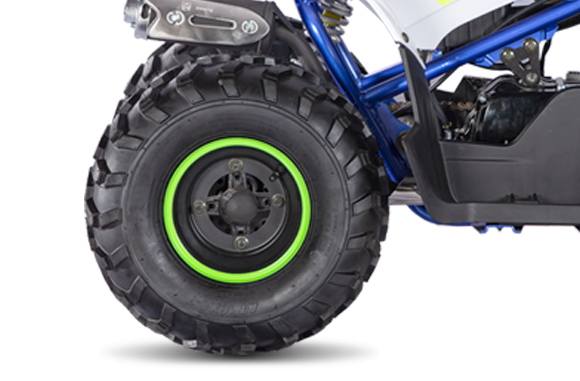

  • Wheels

    Wheels PENTORA 110 is equipped with front and rear 7-inch off-road tires, which can provide excellent traction and performance in different terrains, The 4-hole mounting and fixing method make the tires more reliable.

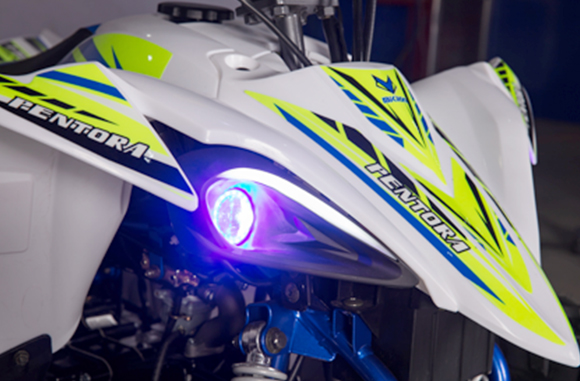

  • Dual halogen front headlights

    Dual halogen front headlightsThe dual headlights in the shape of ''angeleyes''are simple, beautiful and highly recognizable.

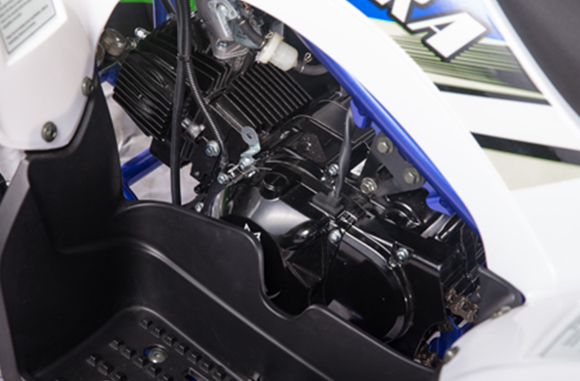

  • Engine

    Engine PENTORA 110 is equipped with a 5.0HP automatic transmission engine that has been approval in the market for many years, allowing young riders to fully enjoy the fun of outdoor sports.

SPECIFICATIONS

PENTORA 110

Engine & Drivetrain

Engine typeLX152FMH Single cylinder, Four-stroke
CoolingAir
Bor and stroke52.4x49.5mm
Cylinders displacement107ml
Compression ratio9.1:1
CarburetorPZ19
Max power5.0HP/7500rpm
Max torque7.5N.m/5500rpm
ClutchWet multi-piece+automatic centrifugal
TransmissionChain drive

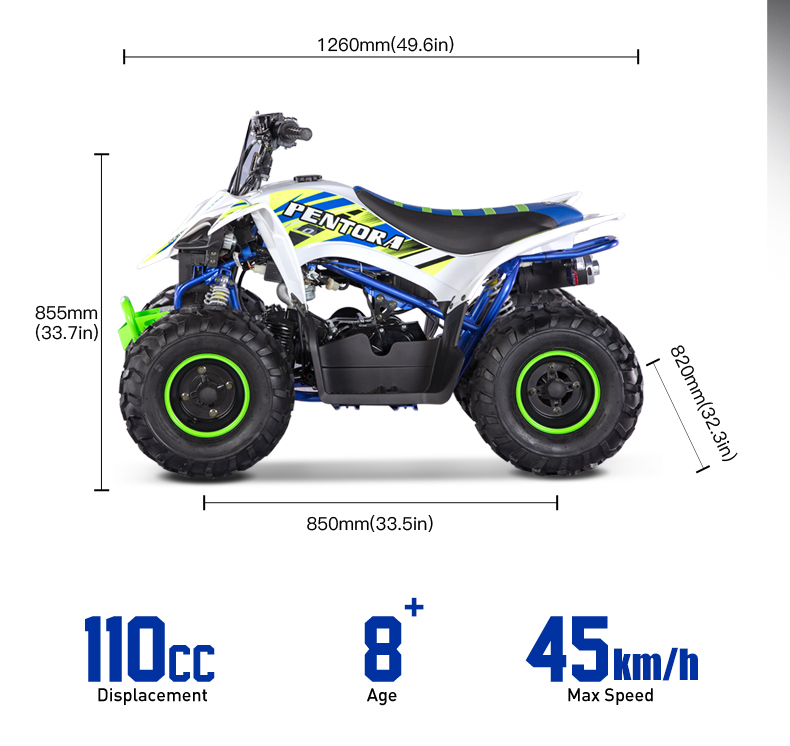

Dimensions

Vehicle size (LxWxH)

1260x820x855mm (49.6x32.3x33.7in)

Wheelbase

850mm (33.5in)

Seat height

620mm (24.4in)

Ground clearance

95mm (3.74in)

Turning radius

1400mm (4.6feet)

Box size (LxWxH)

1270x770x650mm (50x30.3x25.6in)

Dry weight

90kg(198.4Ib)

Box gross weight

109kg(240.3Ib)

Fuel capacity

5L (1.3gal)

Payload capacity

60kg(132.3lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Hydraulic damping shock absorber
Rear SuspensionHydraulic damping shock absorber
Front brakesDrum brake
Rear brakesHydraulic disc brake
Front tires16x8-7; 9 PSI
Rear tires16x8-7; 9 PSl
