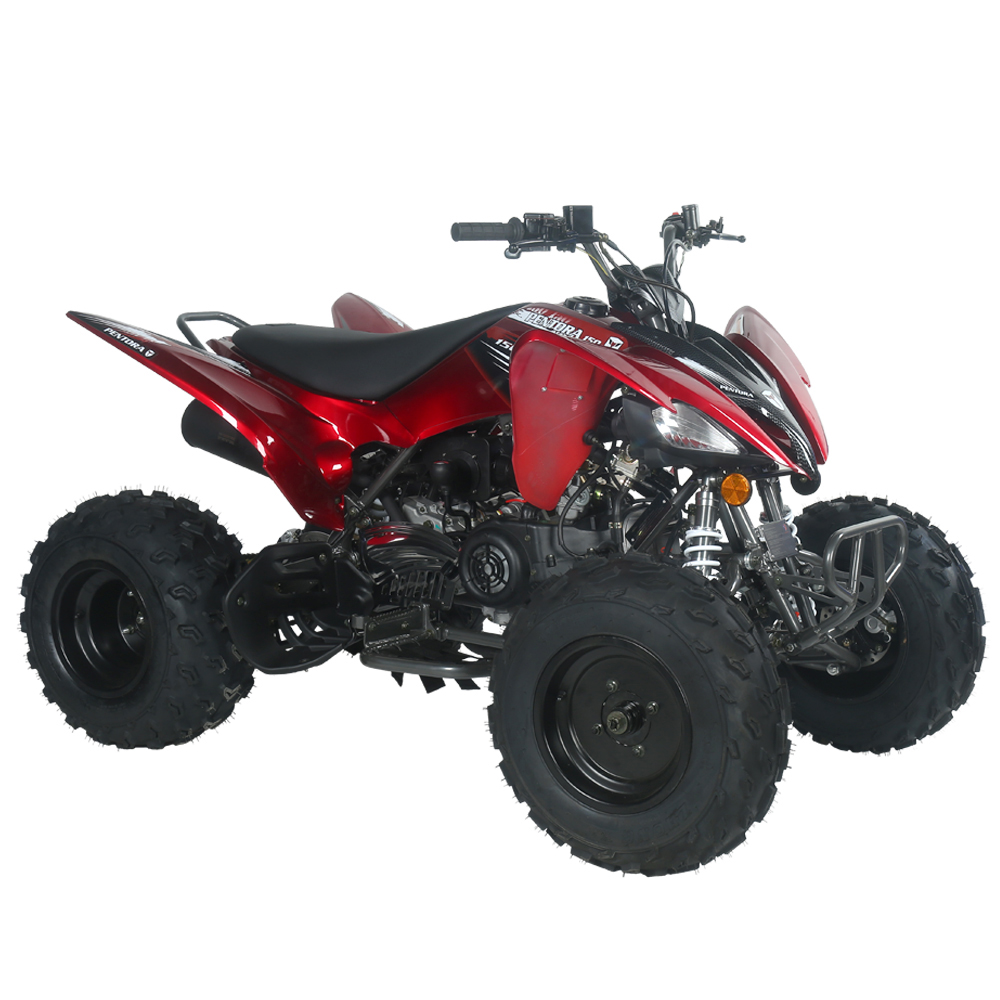

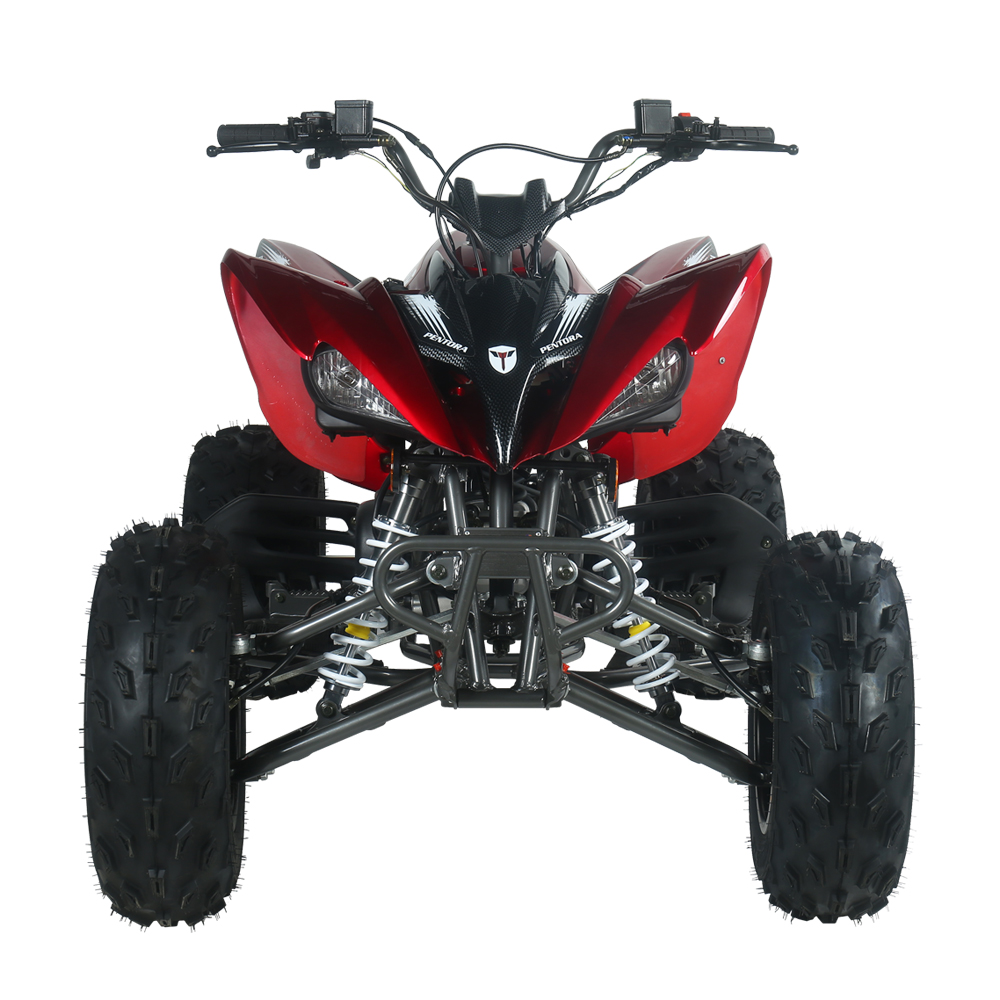

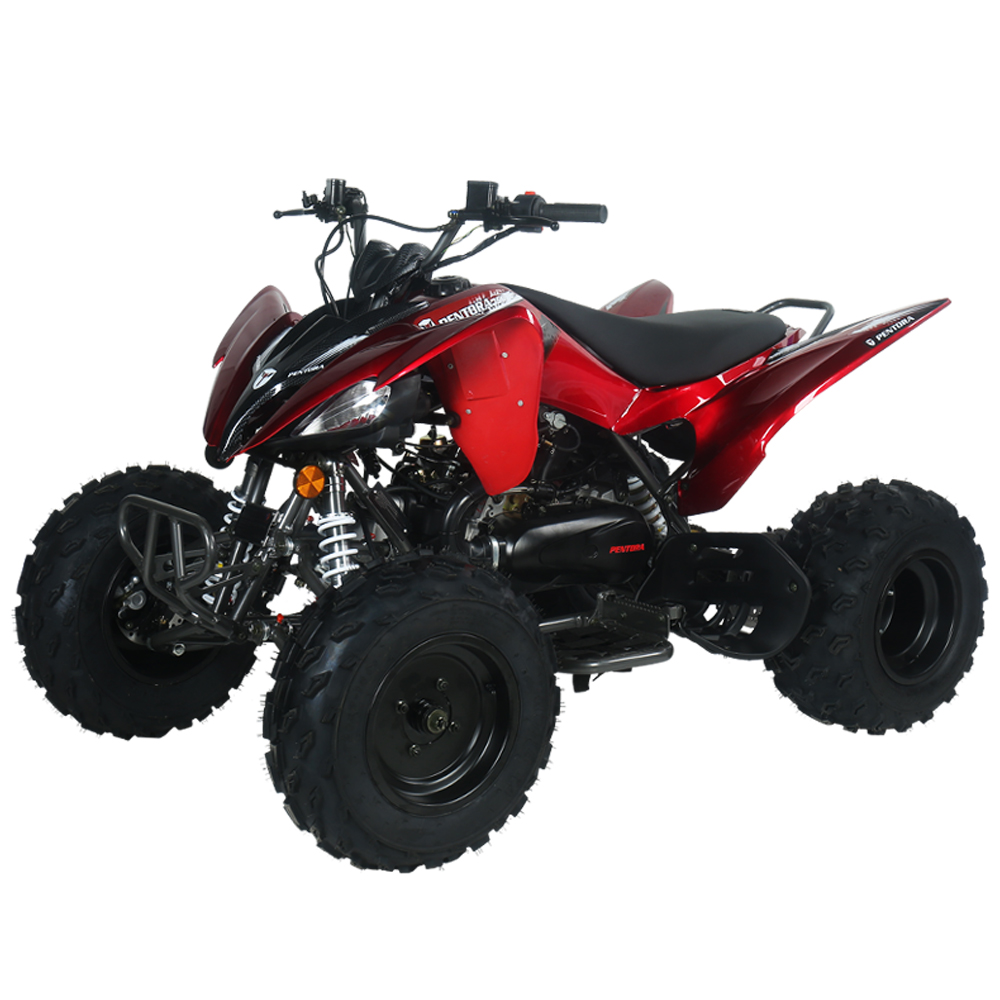

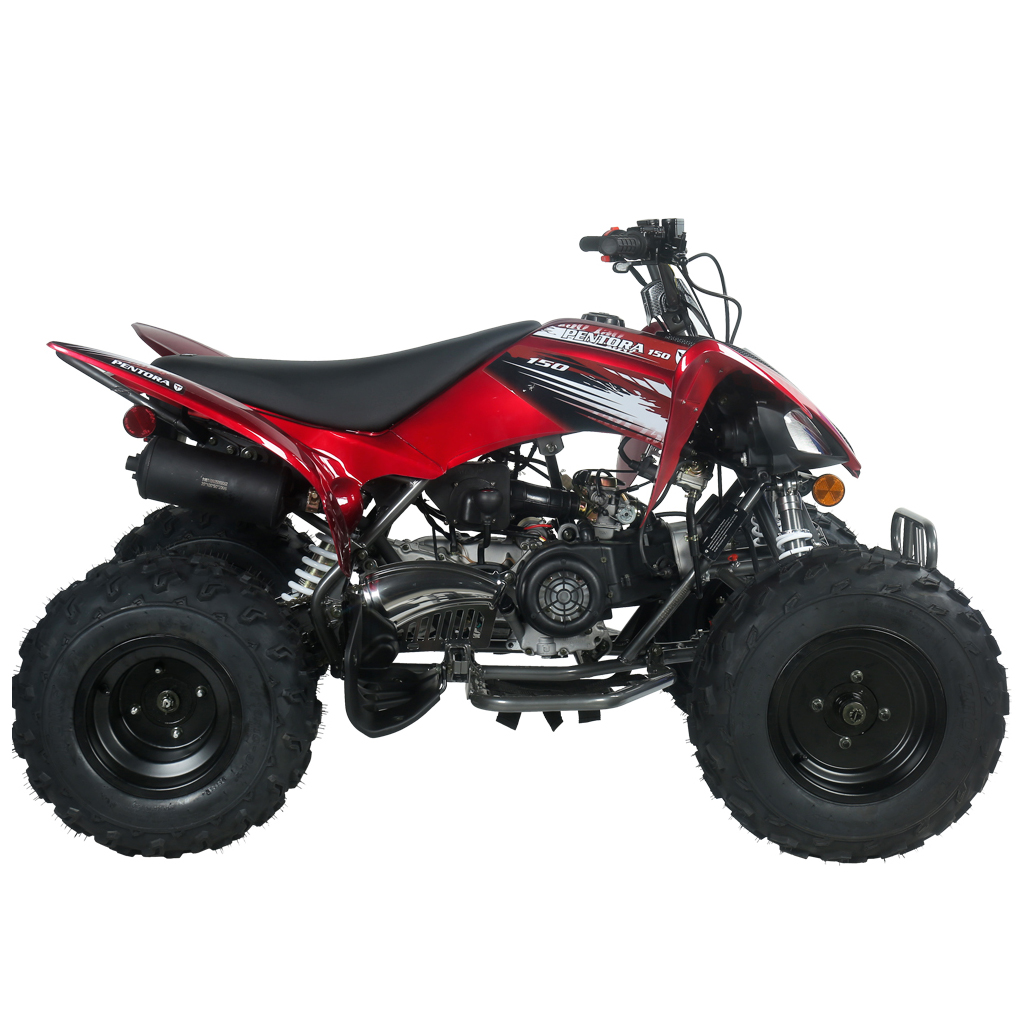

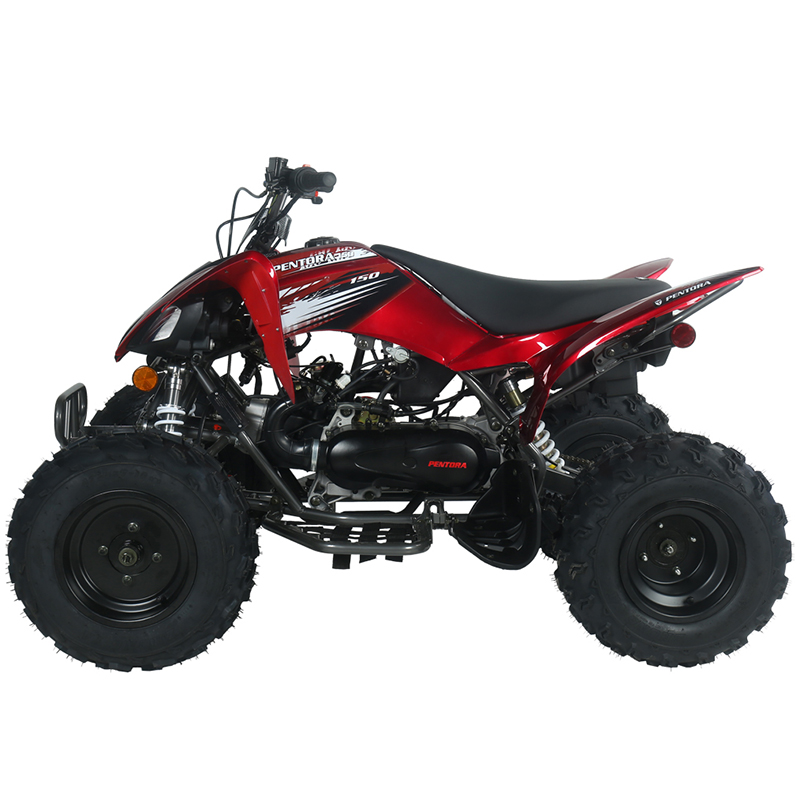

PENTORA 150

ATV(SPORT)

SELECTED COLOR

  • Red

Includes

Carbureted

150cc Engine

Automatic CVT Transmission

2.4 gal Fuel Capacity

Dual A-Arm Front Suspension

Dual Halogen Front Headlights

INQUIRY
FEATURES

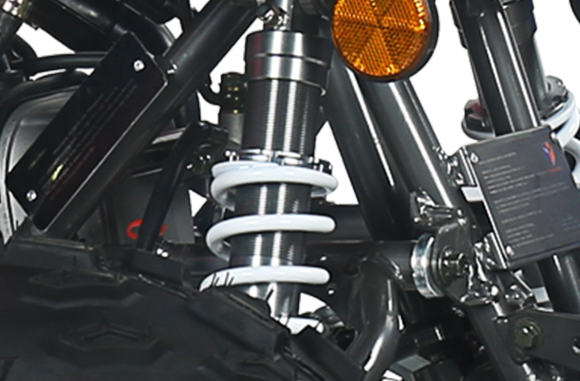

  • Dual A-arm  front suspension

    Dual A-arm front suspensionDual A-arm suspension on the PENTORA 250 allows the suspension to work better by reducing bumps and improving steering, the maximum ..steering angle can reach 38 degrees.

  • Fuel tank

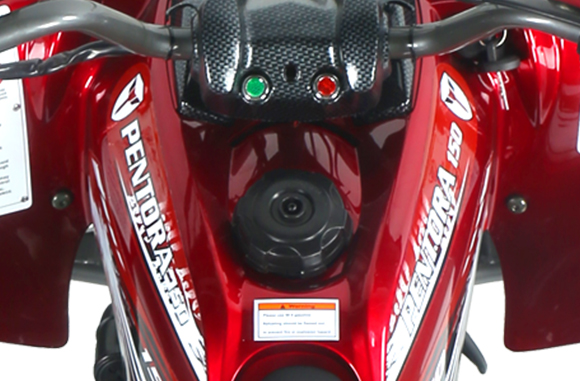

    Fuel tankThe large 2.4-gallon fuel tank ensures that riders can enjoy the moment of passion.

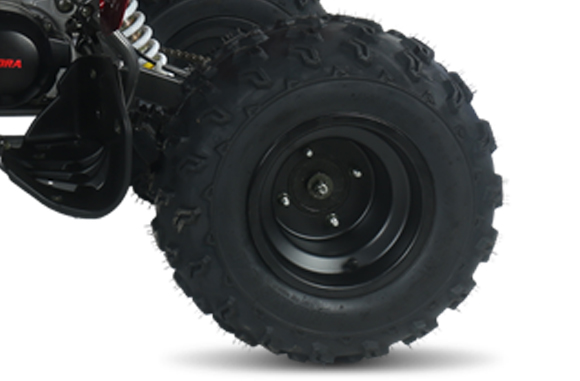

  • Wheels

    WheelsPENTORA 150 equips 10-inch front and 9-inch rear wheels, which can provide excellent traction and performance on different terrains, provide strong lateral support during driving, accurately feedback road information, and improve driving texture.

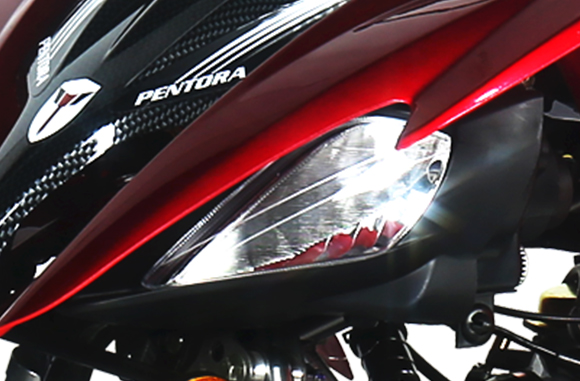

  • Dual halogen  front headlights

    Dual halogen front headlightsThe dual halogen headlights in the shape of ''fox eye'' are full of combat effectiveness and have very strong penetrating power, which can still provide riders with a better line of sight even when driving the machine in rainy and foggy weather.

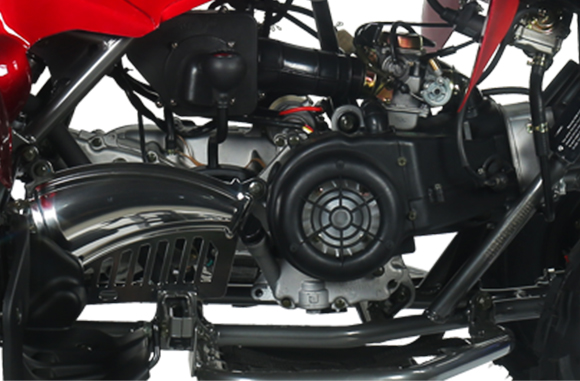

  • Engine

    EngineThe 7.3HP engine of the PENTORA 150 can provide a maximum speed of 70KM/H, which can still maintain stability when the machine is running at high speed and bring driving fun and passion to riders.

SPECIFICATIONS

PENTORA 150

Engine & Drivetrain

Engine type157QMJ-B2 Single cylinder, Four-stroke
CoolingAir
Bore and stroke57.4x57.8mm
Cylinders displacement149.6ml
Compression ratio9.5:1
CarburetorPD24J-C
Max power7.3HP/7000rpm
Max torque10.1N.m/6000rpm
ClutchHoof block automatic centrifugal
TransmissionChain drive

Dimensions

Vehicle size (LxWxH)

1625x1060x1065mm (64x41.7x41.9in)

Wheelbase

1100mm (43.7in)

Seat height

790mm (31.1in)

Ground clearance

130mm (5.12in)

Turning radius

2950mm (9.7feet)

Box size (LxWxH)

1460x880x860mm (57.4x34.6x33.9in)

Dry weight

143kg(315.3Ib)

Box gross weight

170kg(374.8Ib)

Fuel capacity

9L (2.4gal)

Payload capacity

100kg(220lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Hydraulic damping shock absorber
Rear suspensionHydraulic damping shock absorber
Front brakesHydraulic disc brake
Rear brakesHydraulic disc brake
Front tires20x7-10; 9 PSI
Rear tires19x10-9; 9 PSl
