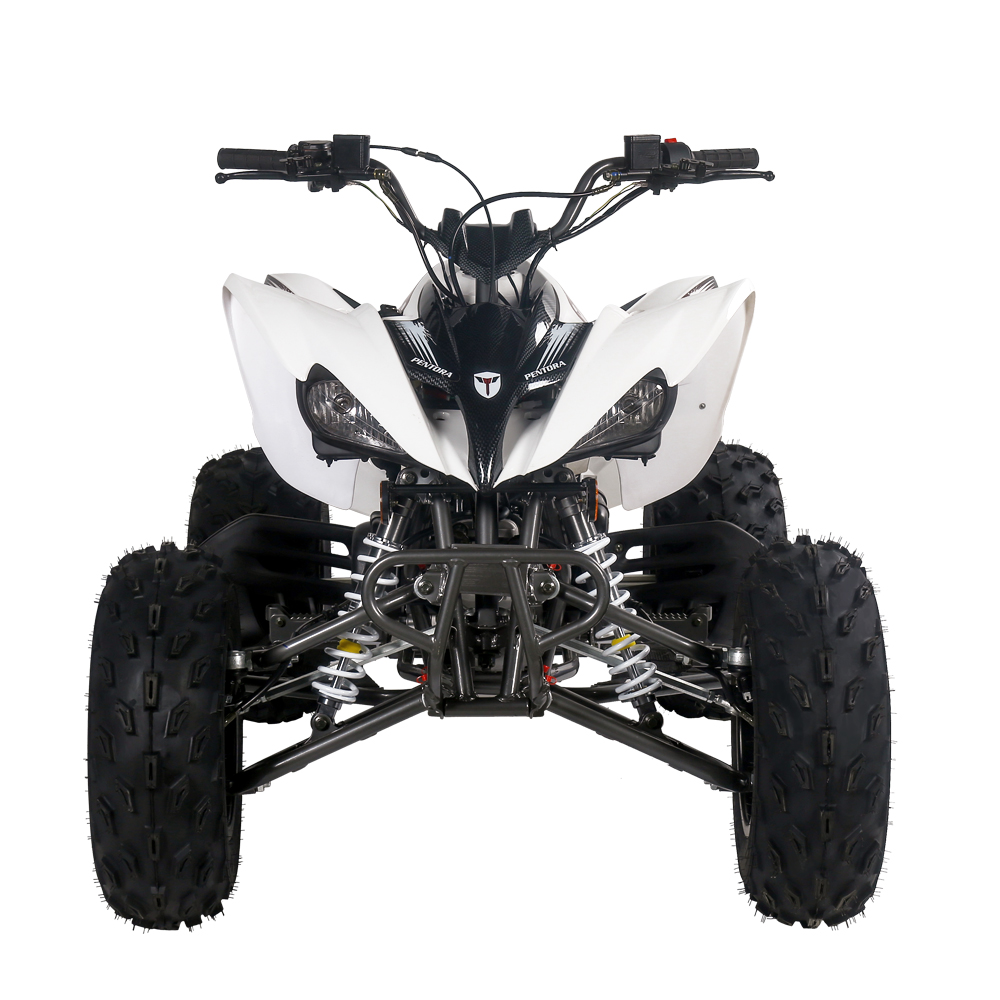

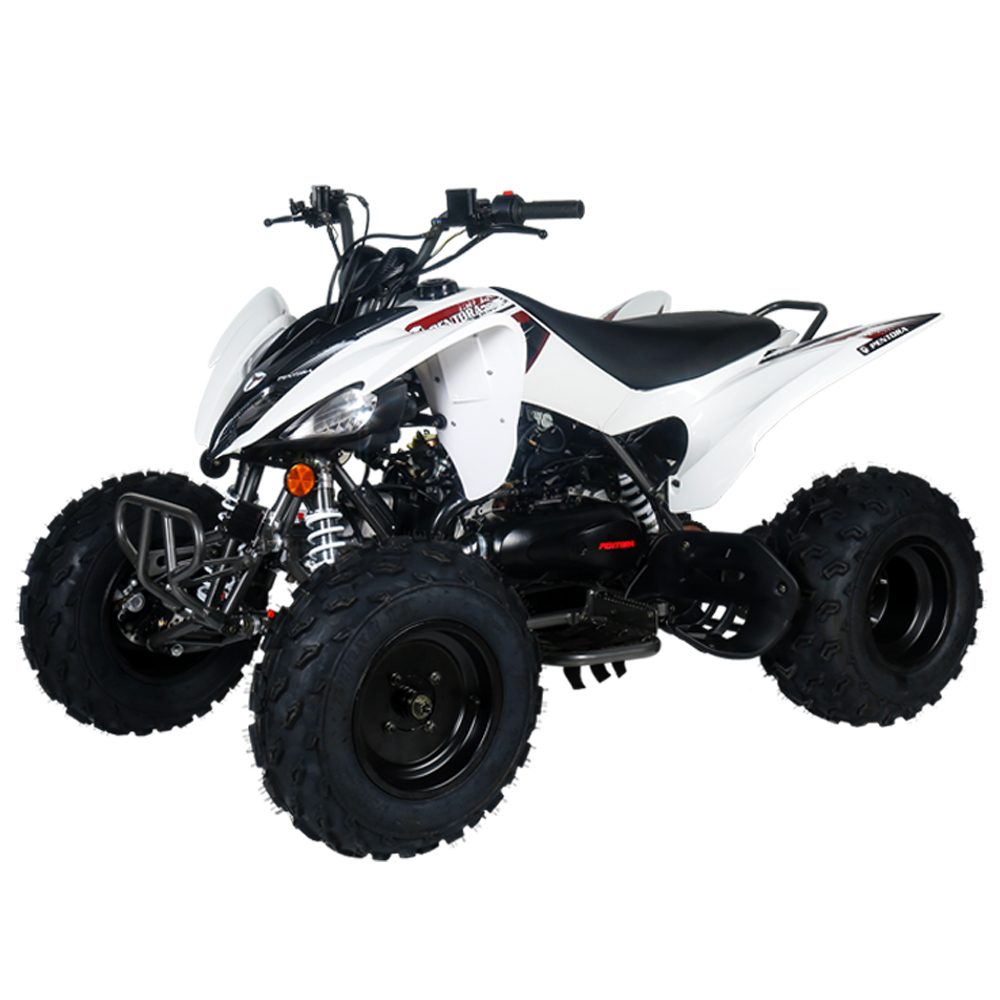

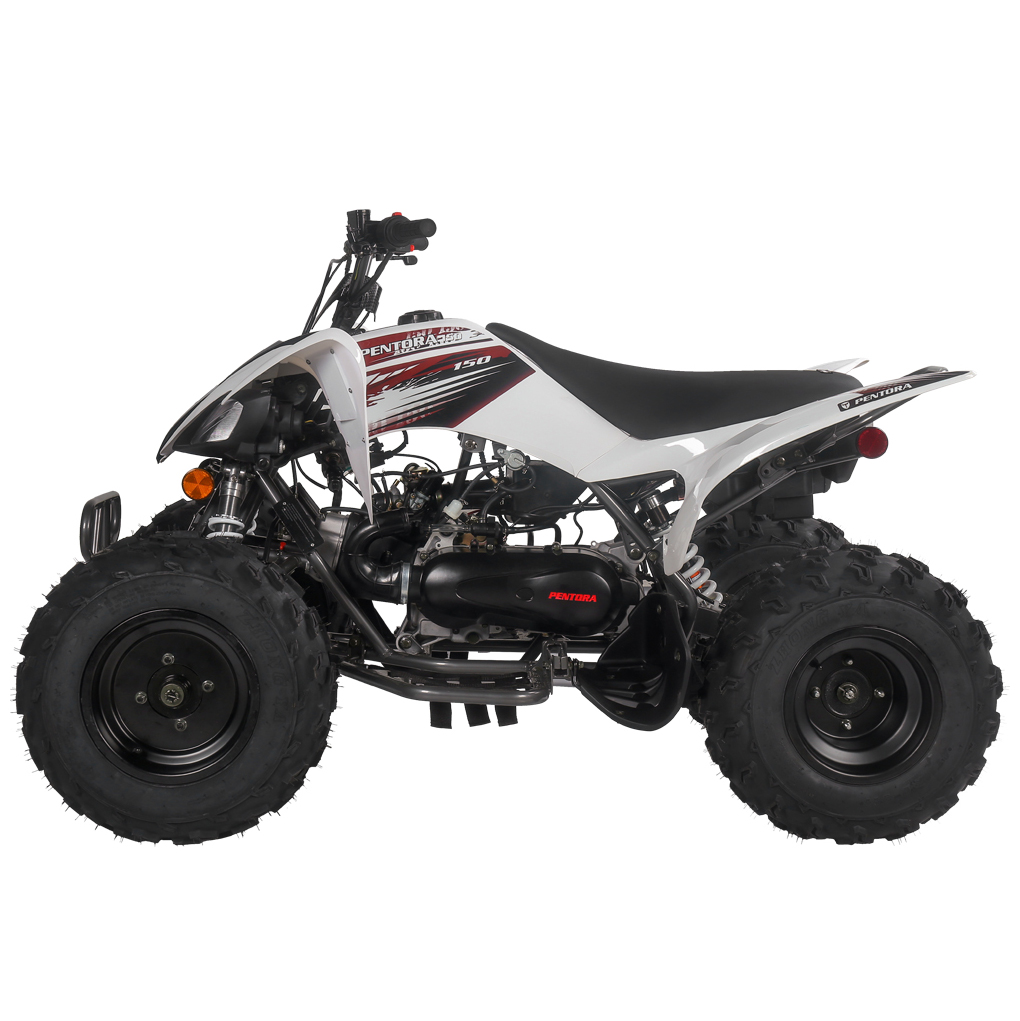

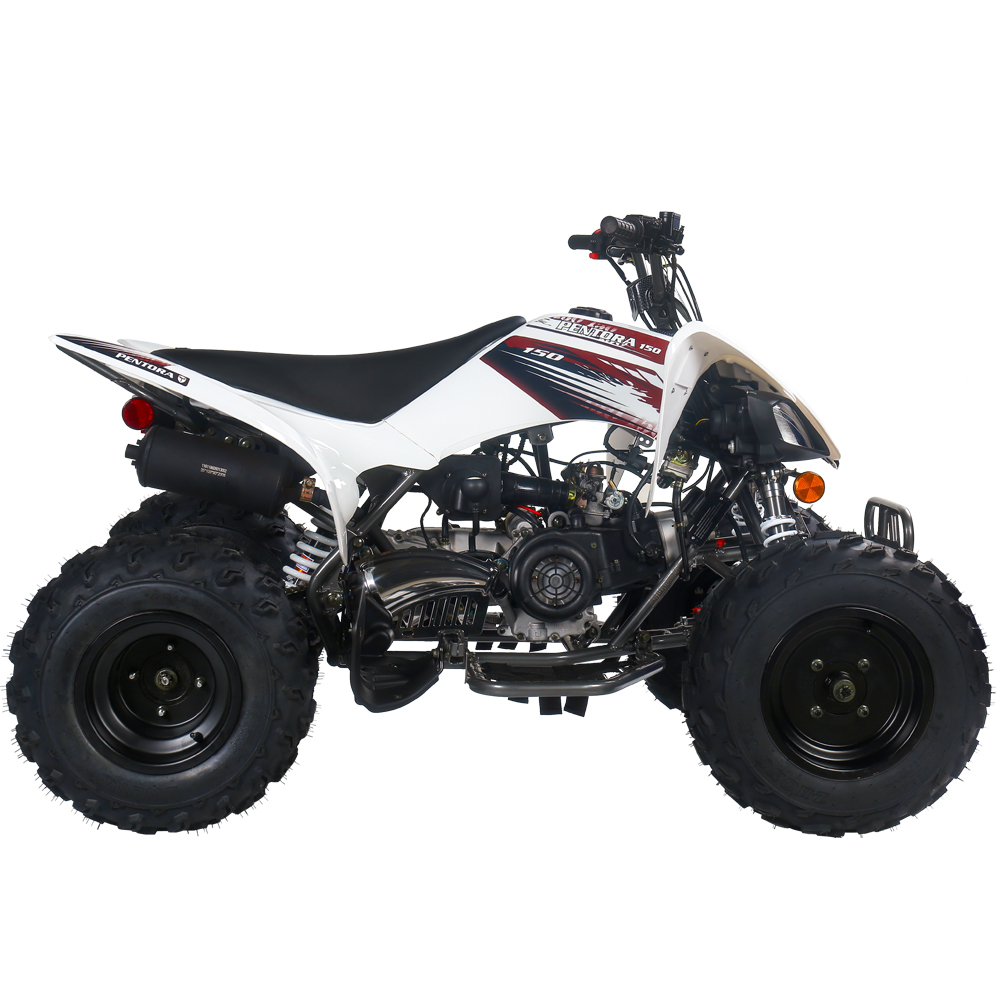

PENTORA 125L

ATV(SPORT)

SELECTED COLOR

  • White

Includes

Carbureted

125cc Engine

2.4 gal Fuel Capacity

Dual A-Arm Front Suspension

Dual Halogen Front Headlights

INQUIRY
FEATURES

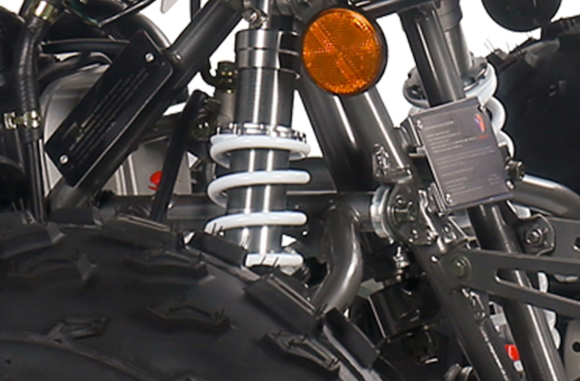

  • Dual A-arm  front suspension

    Dual A-arm front suspensionDual A-arm suspension on the PENTORA 125L allows the suspension to work better by reducing bumps and improving steering, the maximum steering angle can reach 36 degrees.

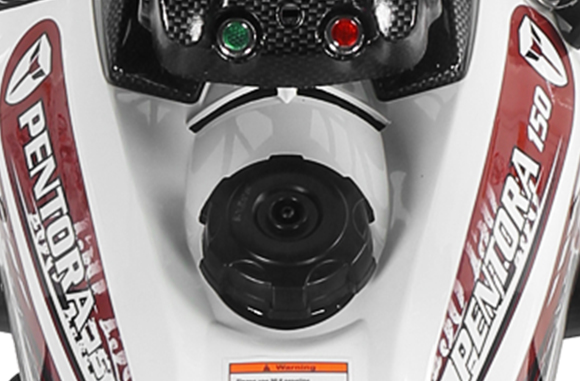

  • Fuel tank

    Fuel tankThe large 2.4-gallon fuel tank ensures that riders can enjoy the moment of passion.

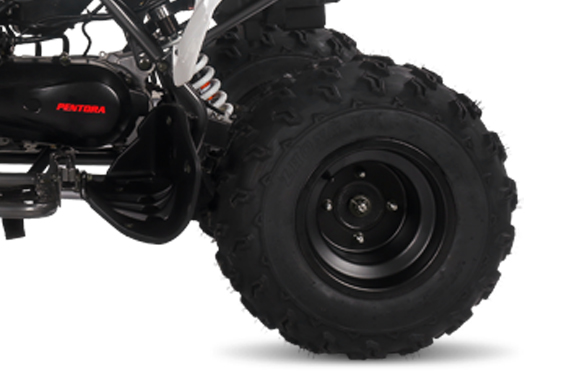

  • Wheels

    Wheels PENTORA 125L equips 8-inch front and rear wheels, which can provide excellent traction and performance on different terrains, provide strong lateral support during driving, accurately feedback road information, and improve driving texture.

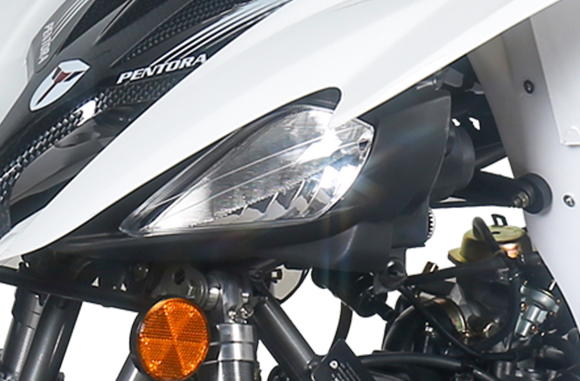

  • Dual halogen front headlights

    Dual halogen front headlightsThe dual halogen headlights in the shape of ''fox eye'' are full of combat effectiveness andhave very strong penetrating power,whichcan still provide riders with a better line ofsight even when driving the machine in rainyand foggy weather.

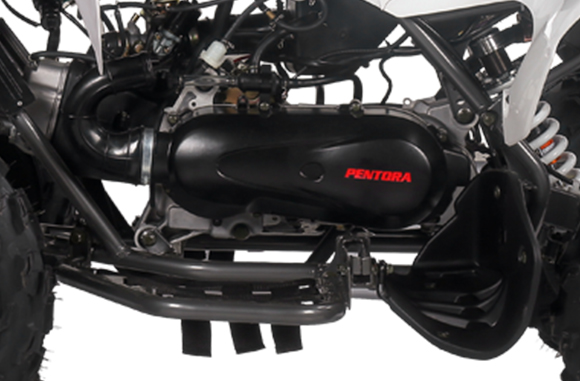

  • Engine

    Engine The 5.8HP engine of the PENTORA 125L can provide a maximum speed of 65KM/H, which can still maintain stability when the machine is running at high speed and bring driving fun and passion to riders.

SPECIFICATIONS

PENTORA 125L

Engine & Drivetrain

Engine typeLC152FMI Single cylinder, Four-stroke
CoolingAir
Bore and stroke54x54mm
Cylinders displacement124ml
Compression ratio8.7:1
CarburetorPZ22
Max power5.8HP/7500rpm
Max torque9.2N.m/5500-6000rpm
ClutchAutomatic dual clutch
TransmissionChain drive

Dimensions

Vehicle size (LxWxH)

1625x1060x970mm (64x41.7x38.2in)

Wheelbase

1040mm (40.9in)

Seat height

730mm (28.7in)

Ground clearance

110mm (4.33in)

Turning radius

2500mm (8.2feet)

Box size (LxWxH)

1455x875x665mm (57.3x34.4x26.2in)

Dry weight

117kg(275.9Ib)

Box gross weight

140kg(310.9Ib)

Fuel capacity

9L (2.4gal)

Payload capacity

70kg(154.3lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Hydraulic damping shock absorber
Rear suspensionHydraulic damping shock absorber
Front brakesHydraulic disc brake
Rear brakesHydraulic disc brake
Front tires19x7-8; 10 PSI
Rear tires18x9.5-8; 10 PSl
