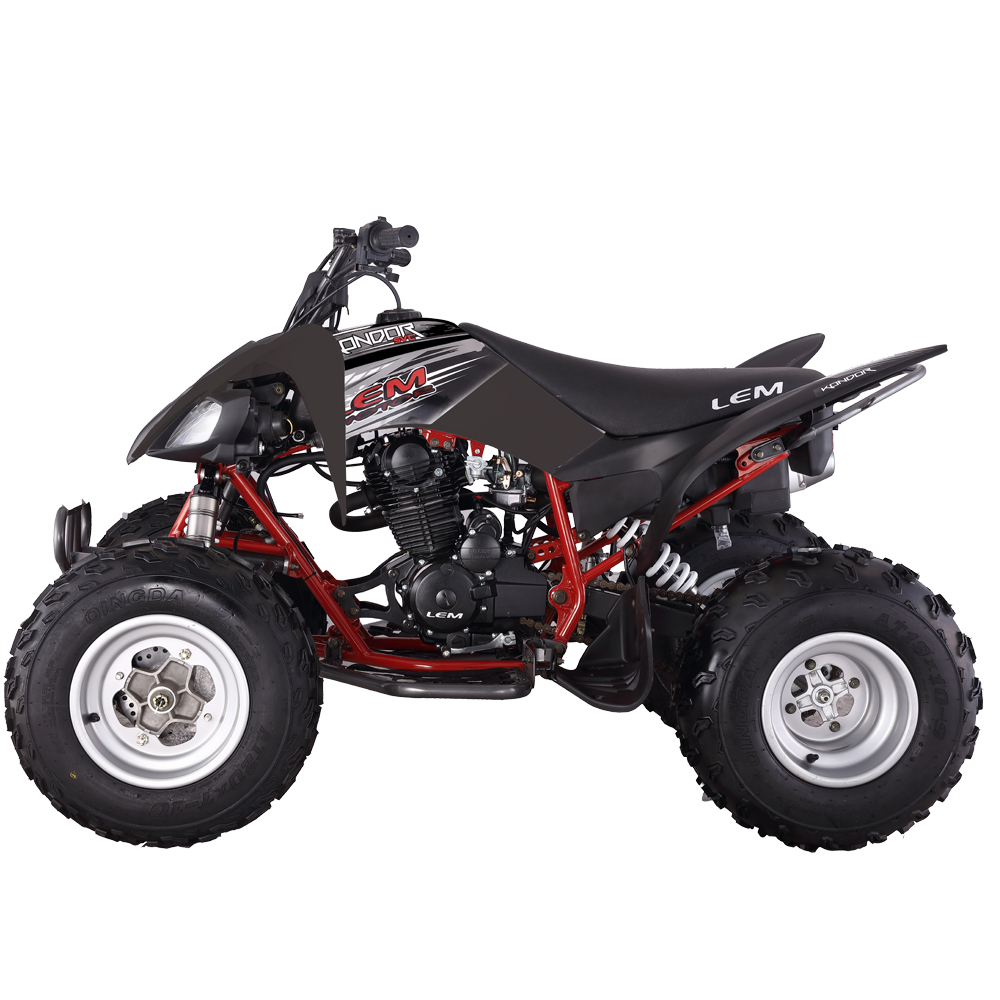

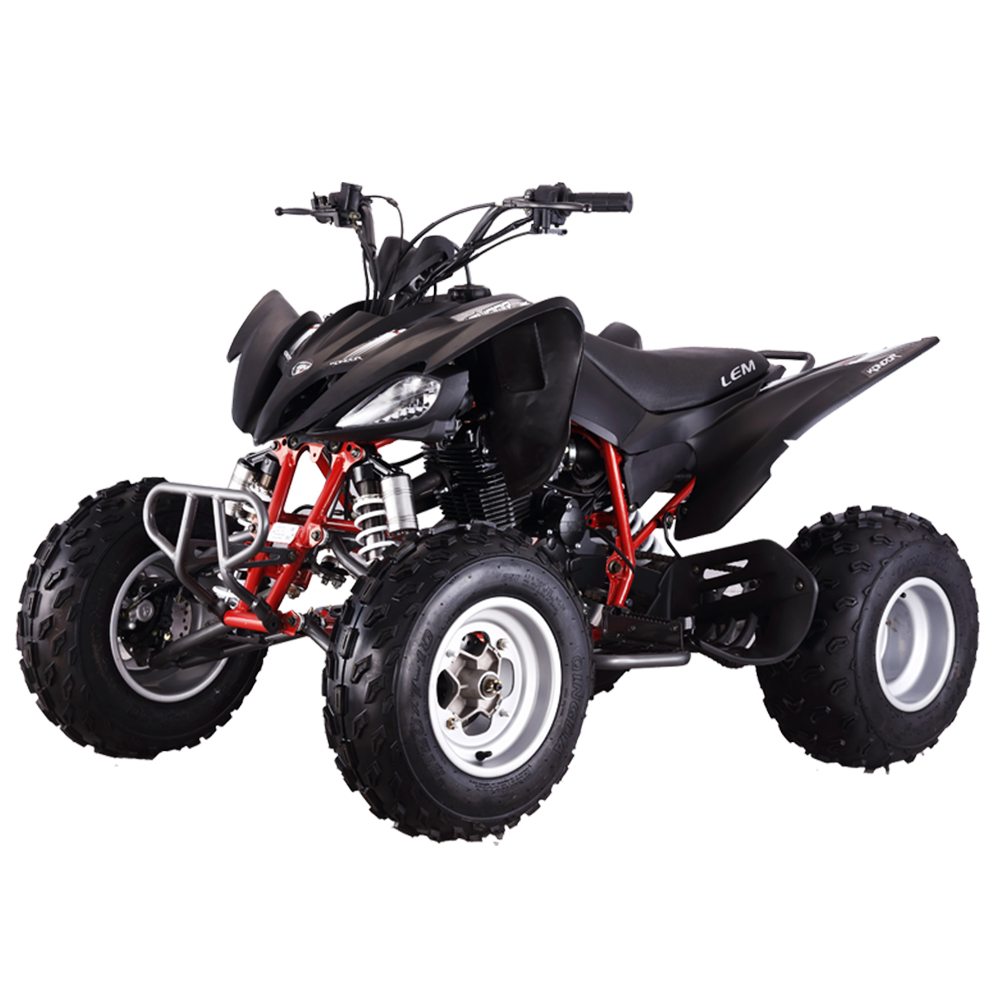

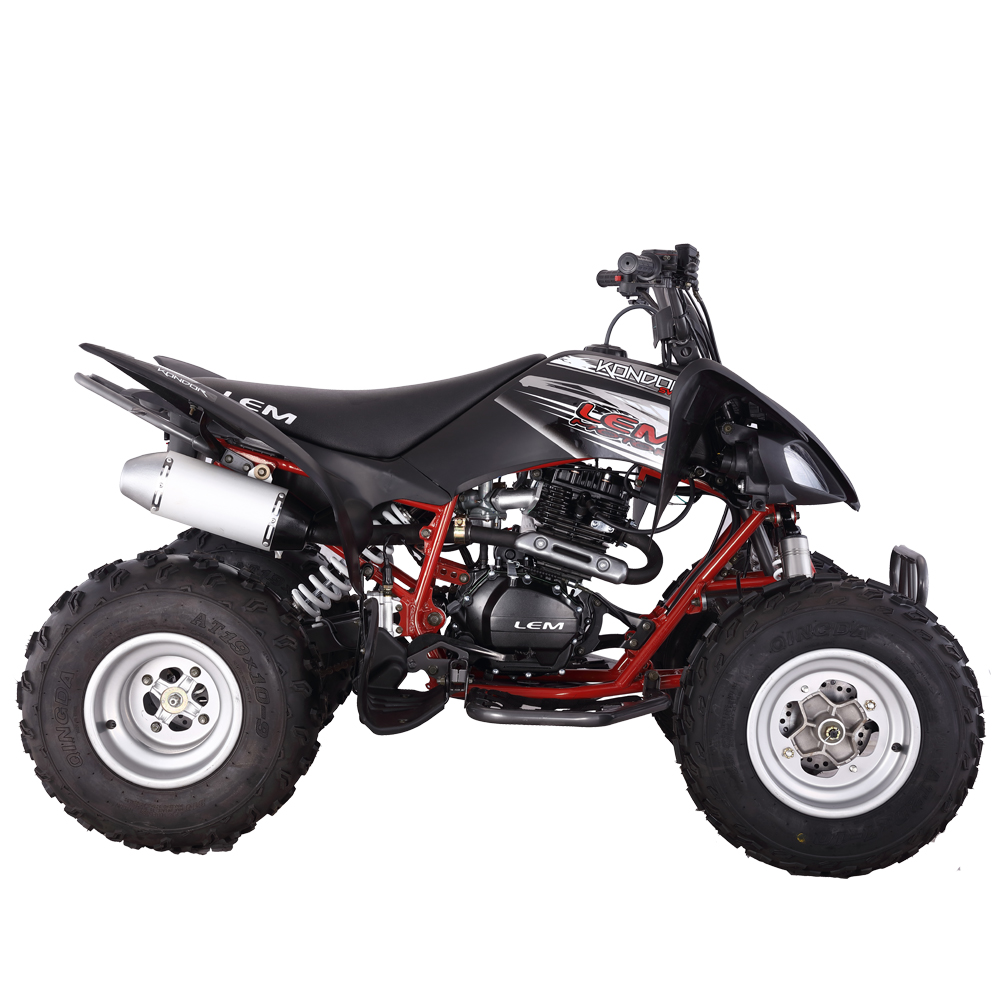

PENTORA 250

ATV(SPORT)

SELECTED COLOR

  • Black

Includes

Carbureted

250cc Engine

2.4 gal Fuel Capacity

Dual A-Arm Front Suspension

Dual Halogen Front Headlights

INQUIRY
FEATURES

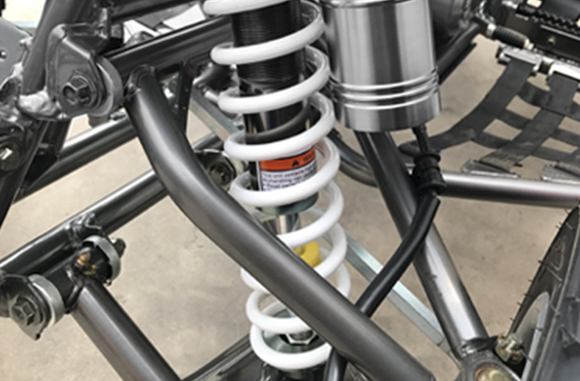

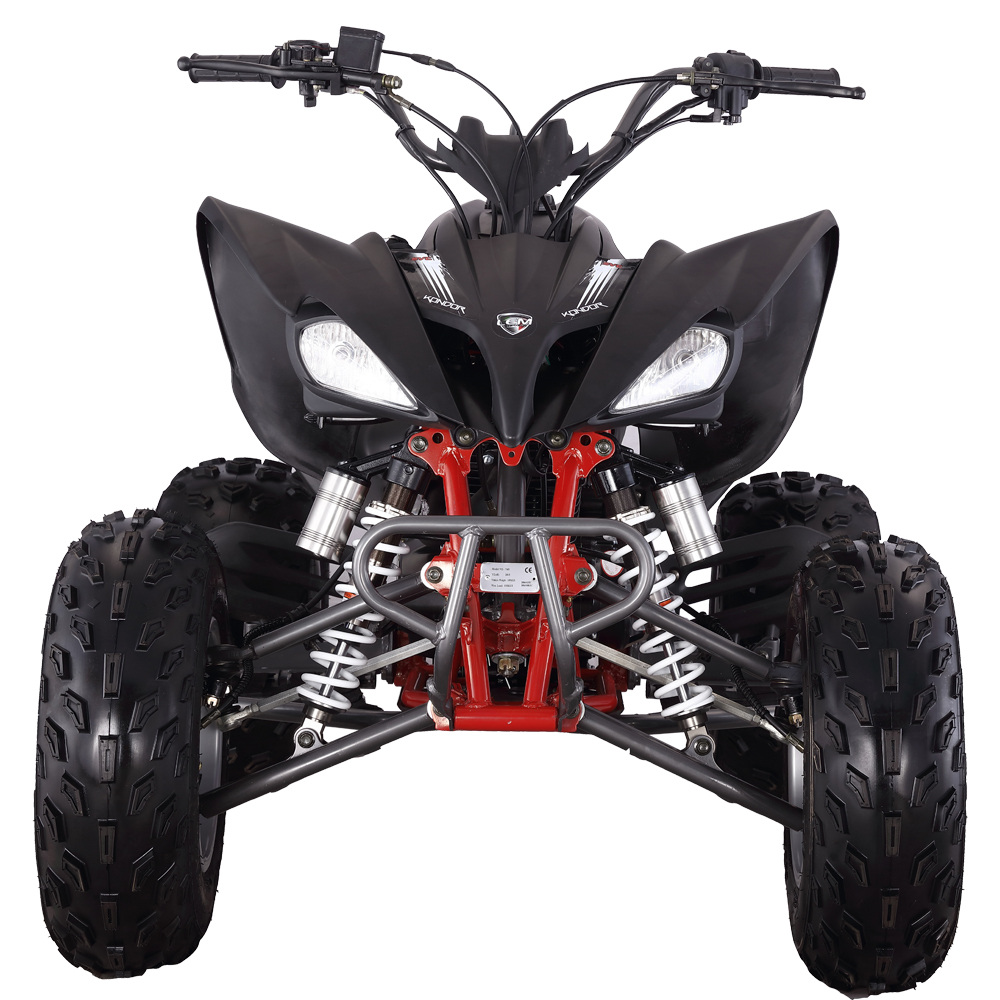

  • Dual A-arm  front suspension

    Dual A-arm front suspensionDual A-arm suspension on the PENTORA 250 allows the suspension to work better by reducing bumps and improving steering.

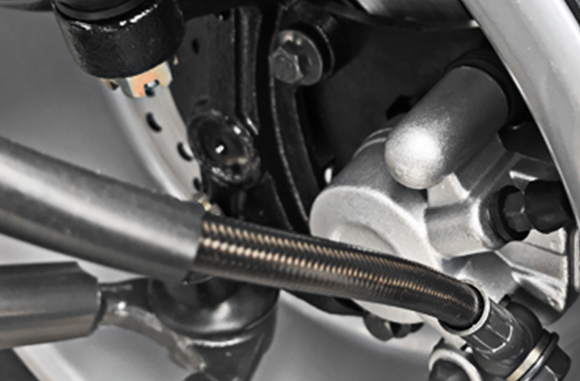

  • Front & rear disc brakes

    Front & rear disc brakesPENTORA 250 front and rear hydraulic disc brakes provide excellent stopping power, ensure that the machine can still be stopped quickly when running at high speed

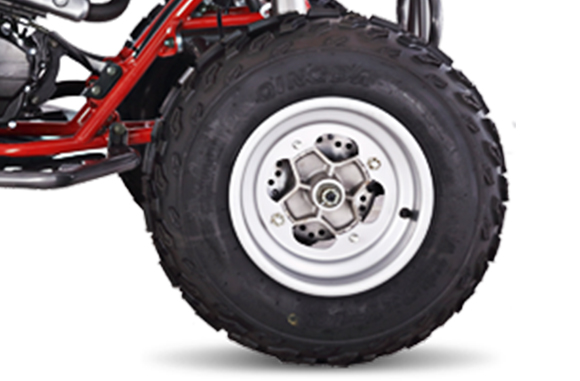

  • Wheels

    Wheels PENTORA 250 equips 10-inch front and 9-inch rear wheels, which can provide excellent traction and performance on different terrains, provide strong lateral support during driving, accurately feedback road information, and improve driving texture.

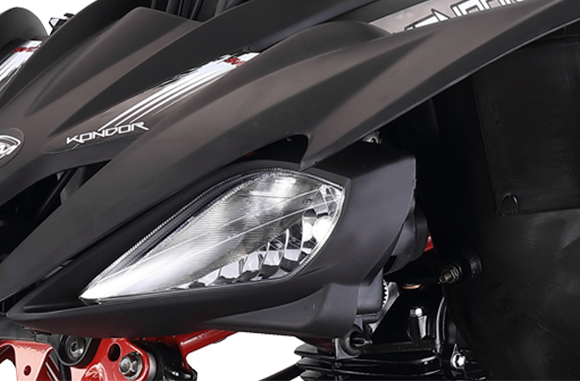

  • Dual halogen front headlights

    Dual halogen front headlightsThe dual halogen headlights in the shape of ''fox eye'' are full of combat effectiveness and have very strong penetrating power, which can still provide riders with a better line of sight even when driving the machine in rainy and foggy weather.

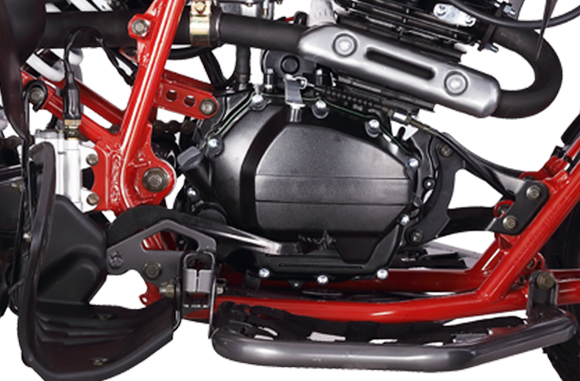

  • Engine

    Engine The 12HP engine of the PENTORA 250 can provide a maximum speed of 90KM/H, which can still maintain stability when the machine is running at high speed and bring driving fun and passion to riders.

SPECIFICATIONS

PENTORA 250

Engine & Drivetrain

Engine typeLC166FMM Single cylinder, Four-stroke
CoolingAir
Bore and stroke65.5x66.2mm
Cylinders displacement223ml
Compression ratio9:1
CarburetorPZ30
Max power12HP/7500rpm
Max torque17N.m/6000rpm
ClutchWet multi-piece + automatic centrifugal
TransmissionChain drive

Dimensions

Vehicle size (LxWxH)

1625x1060x1065mm (64x41.7x41.9in)

Wheelbase

1090mm (42.9in)

Seat height

790mm (31.1in)

Ground clearance

135mm (5.3in)

Turning radius

2950mm (9.7feet)

Box size (LxWxH)

1460x880x860mm (57.4x34.6x33.9in)

Dry weight

149kg(328.5Ib)

Box gross weight

177kg(390.2Ib)

Fuel capacity

9L (2.4gal)

Payload capacity

100kg(220lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Macpherson independent suspension
Rear SuspensionSingle Independent Suspension
Front brakesHydraulic disc brake
Rear brakesHydraulic disc brake
Front tires20x7-10; 9 PSI
Rear tires19x10-9; 9 PSl

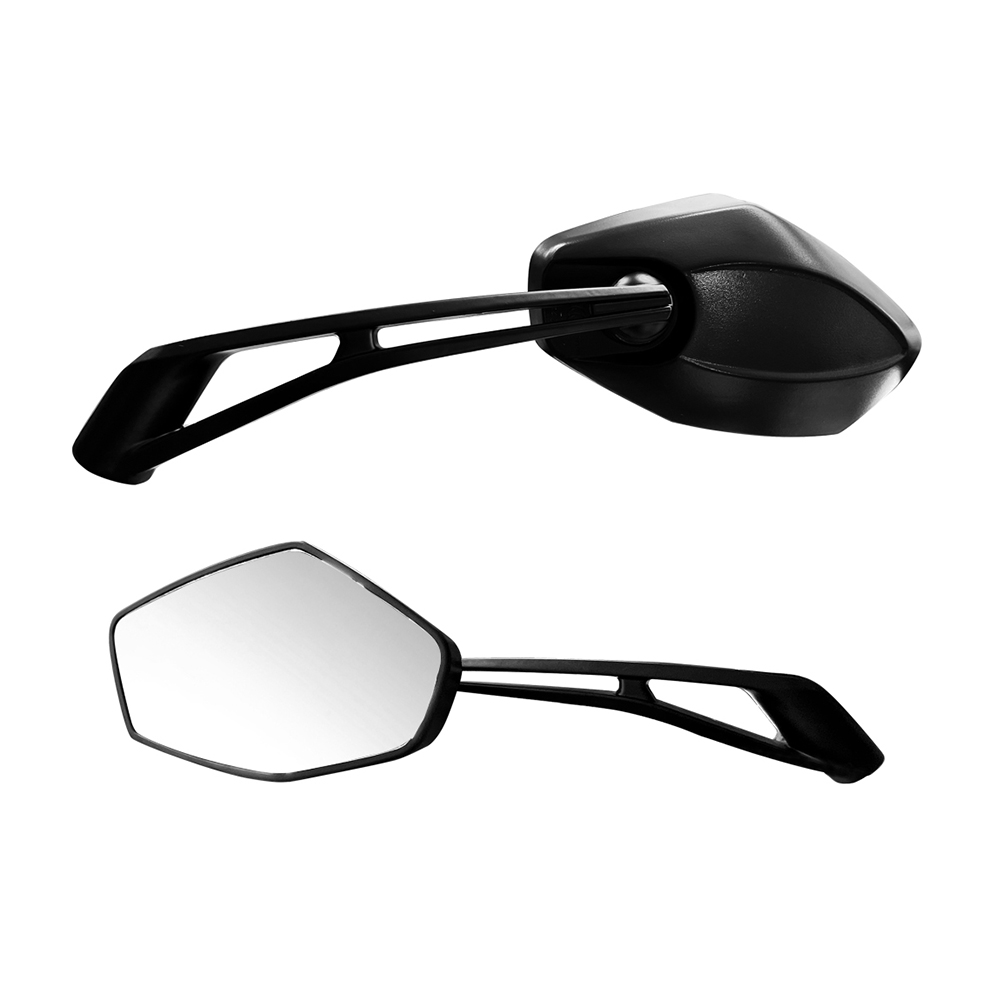

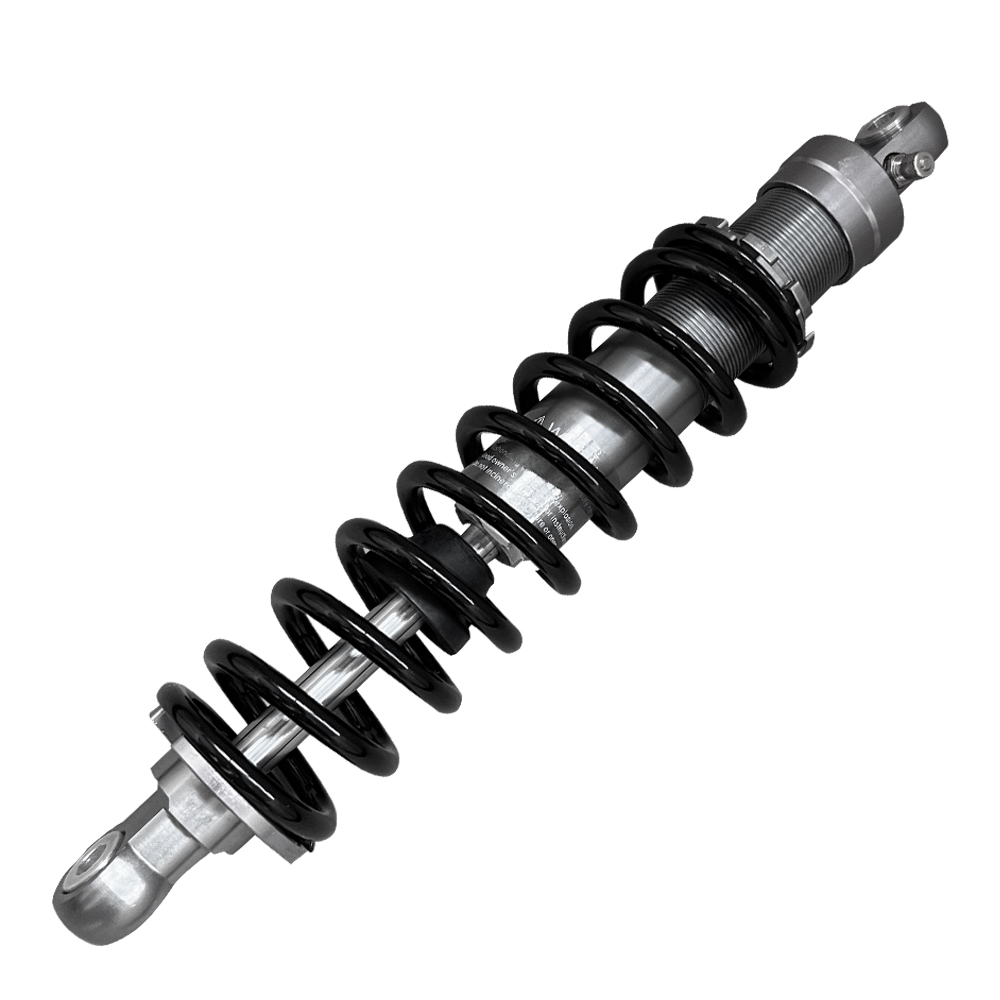

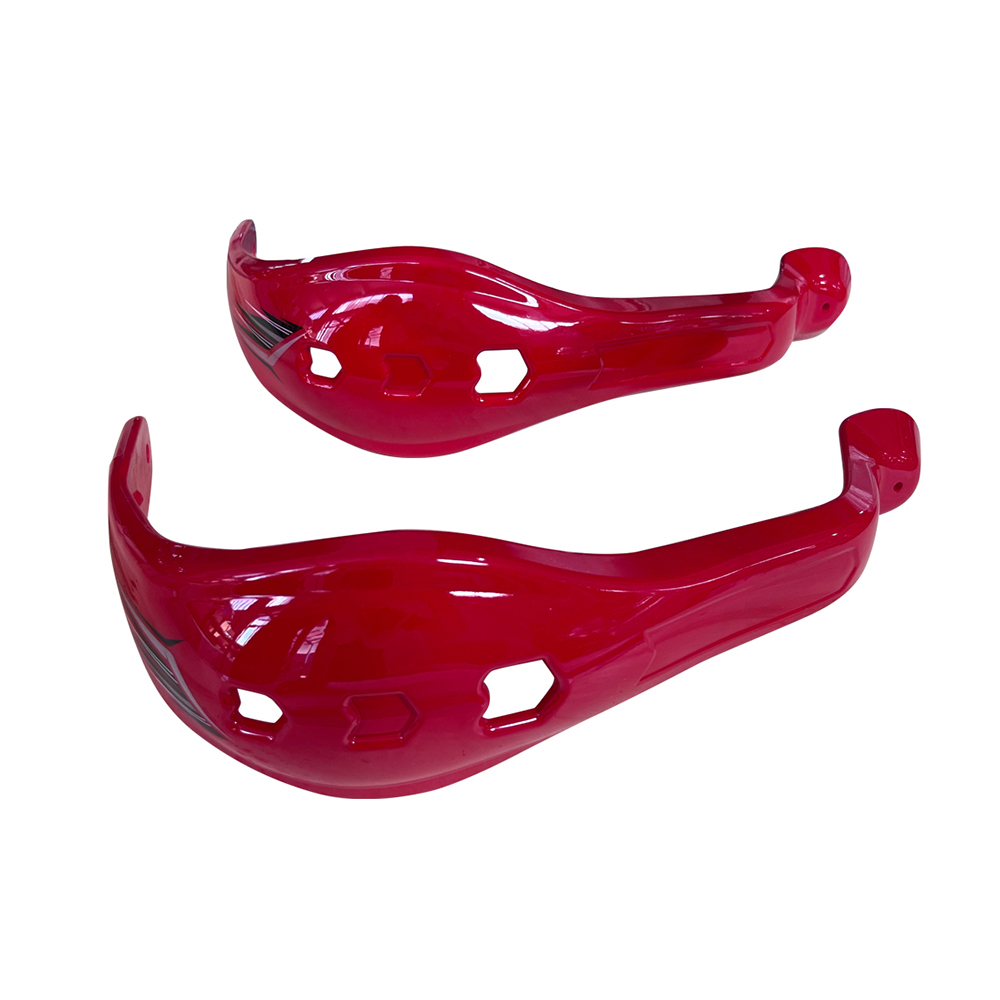

ACCESSORIES
