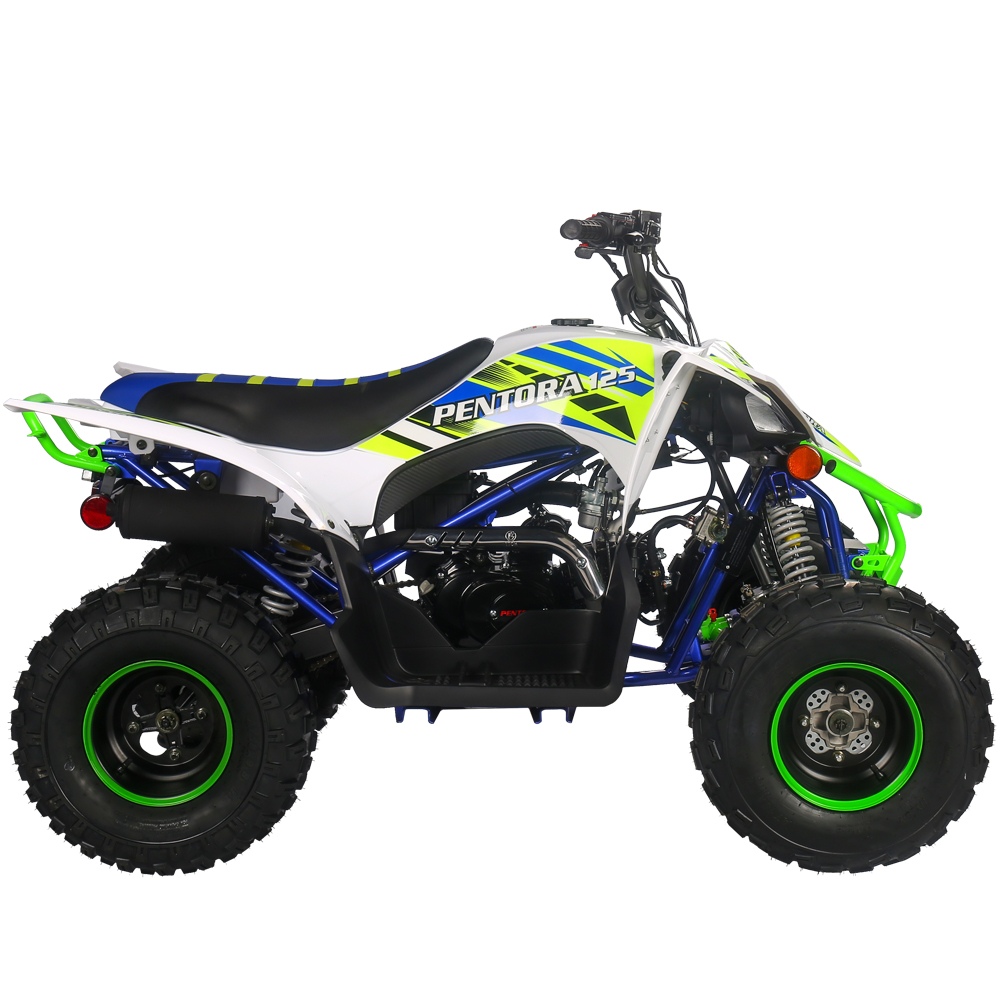

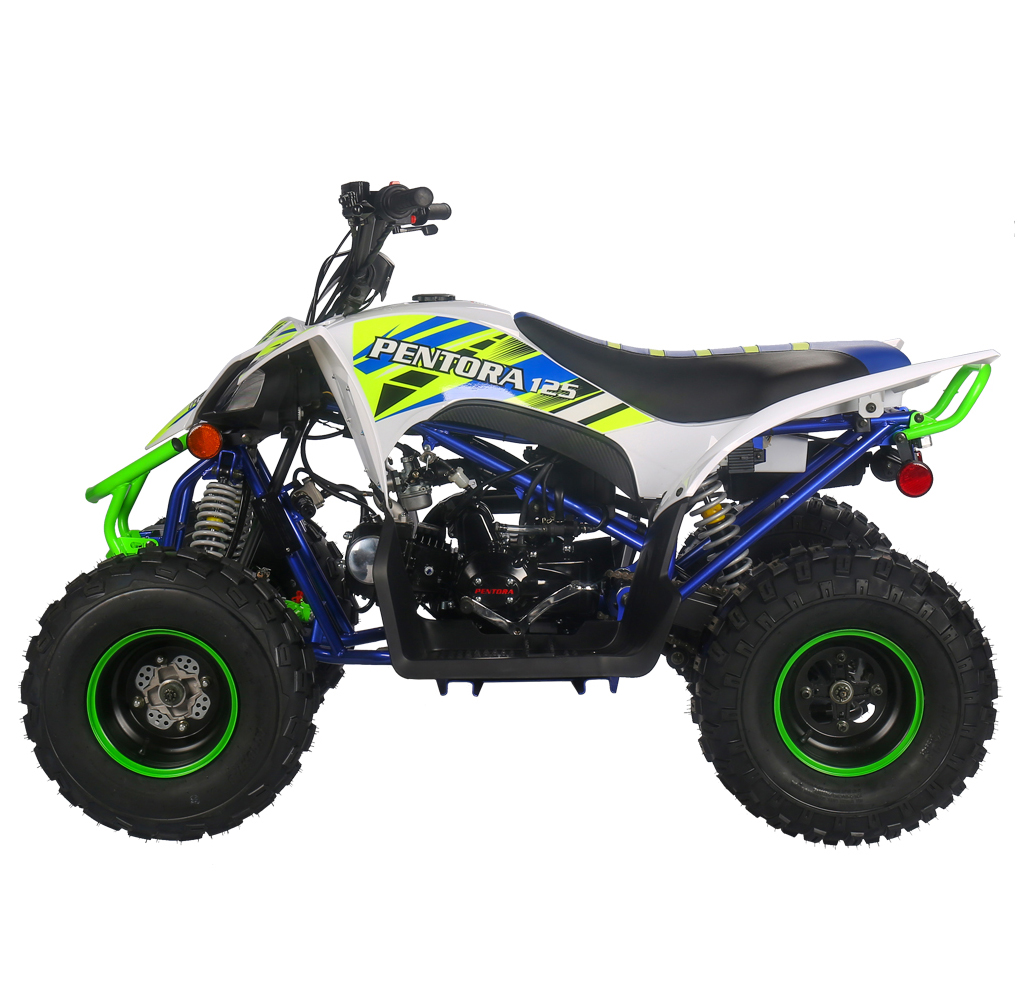

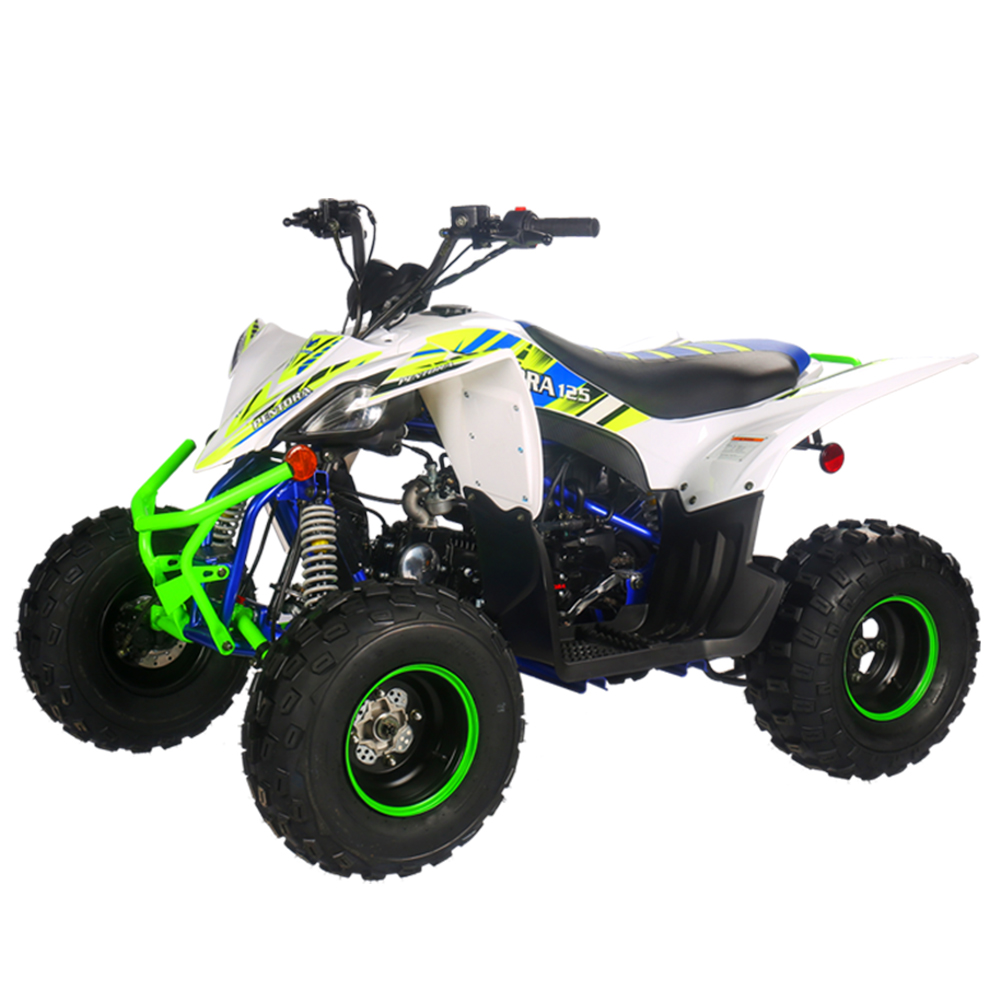

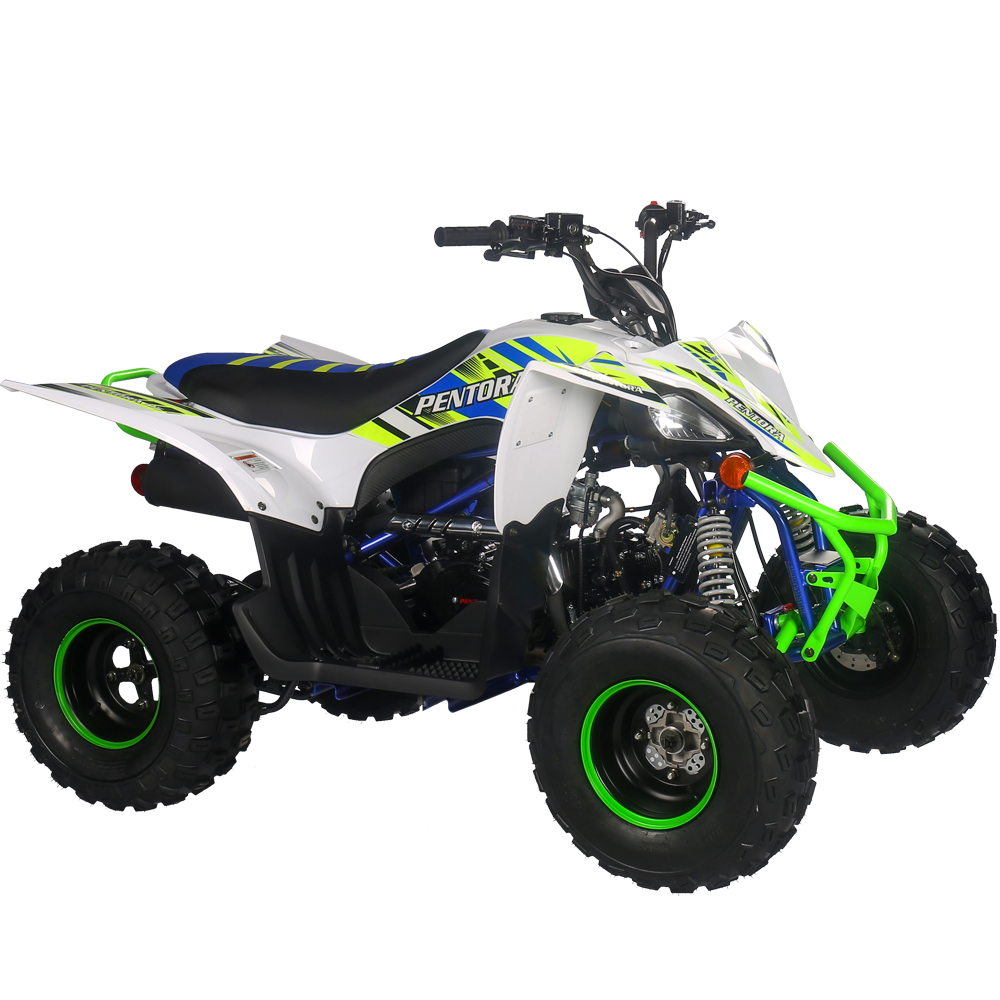

PENTORA 125

ATV(SPORT)

SELECTED COLOR

  • White

Includes

Carbureted

125cc Engine

Dual A-Arm Front Suspension

Dual Halogen Front Headlights

INQUIRY
FEATURES
  • Dual A-arm  front suspension

    Dual A-arm front suspensionDual A-arm suspension on the PENTORA 125 allows the suspension to work better by reducing bumps and improving steering, the maximum steering angle can reach 36 degrees.

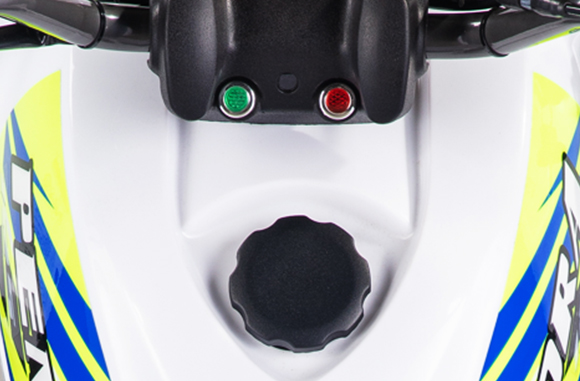

  • Fuel tank

    Fuel tankThe large 1.7-gallon fuel tank ensures that riders can enjoy the moment of passion.

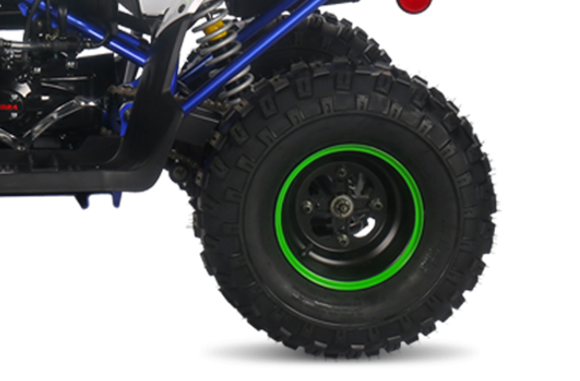

  • Wheels

    WheelsPENTORA 125 equips 8-inch front and rear wheels, which can provide excellent traction and performance on different terrains, provide strong lateral support during driving, accurately feedback road information, and improve driving texture.

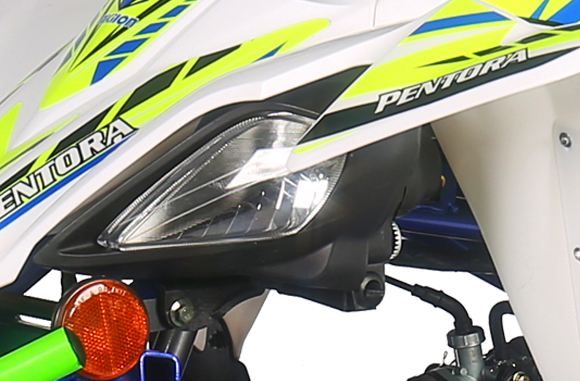

  • Dual halogen  front headlights

    Dual halogen front headlightsThe dual halogen headlights in the shape of ''fox eye'' are full of combat effectiveness and have very strong penetrating power, which can still provide riders with a better line of sight even when driving the machine in rainy and foggy weather.

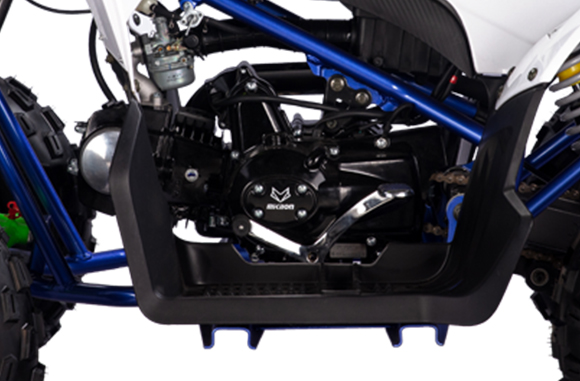

  • Engine

    EngineThe 5.8HP engine of the PENTORA 125 can provide a maximum speed of 55KM/H, which can still maintain stability when the machine is running at high speed and bring driving fun and passion to riders.

SPECIFICATIONS

PENTORA 125

Engine & Drivetrain

Engine typeLX152FMI Single cylinder, Four-stroke
CoolingAir
Bore and stroke52.4x57mm
Cylinders displacement122.9ml
Compression ratio8.7:1
CarburetorPZ19
Max power5.8HP/7500rpm
Max torque8.8N.m/5500rpm
ClutchWet multi-piece+automatic centrifugal
TransmissionChain drive

Dimensions

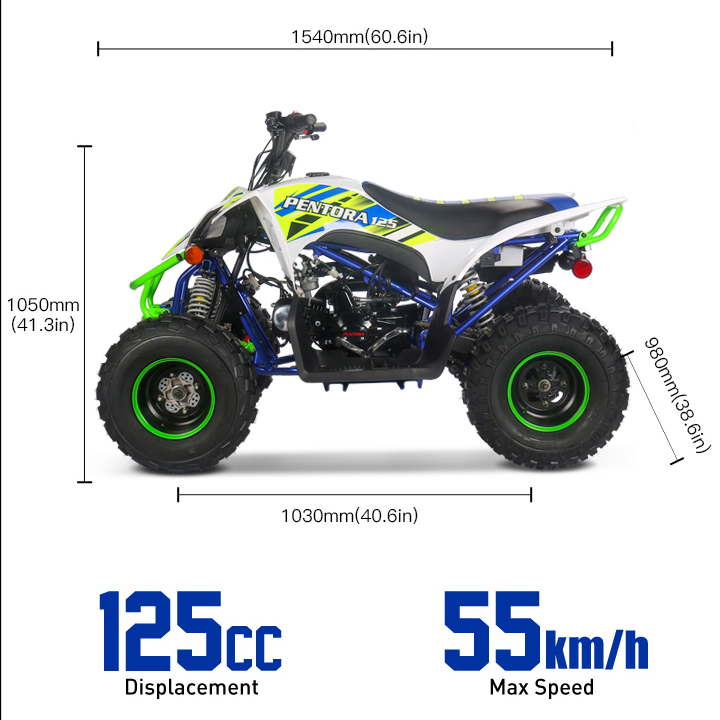

Vehicle size (LxWxH)

1540x980x1050mm (60.6x38.6x41.3in)

Wheelbase

1030mm (40.6in)

Seat height

740mm (29.1in)

Ground clearance

105mm (4.13in)

Turning radius

1900mm (6.2feet)

Box size (LxWxH)

1350x970x660mm (53.1x38.2x26in)

Dry weight

120kg(264.4Ib)

Box gross weight

143kg(315.3Ib)

Fuel capacity

6.5L (1.7gal)

Payload capacity

82kg(180.8lb)

Person capacity1

Chassis Suspension Brakes

Front suspension

Hydraulic damping shock absorber
Rear SuspensionHydraulic damping shock absorber
Front brakesHydraulic disc brake
Rear brakesHydraulic disc brake
Front tires18x7-8; 9 PSI
Rear tires18x9-8; 9 PSl
