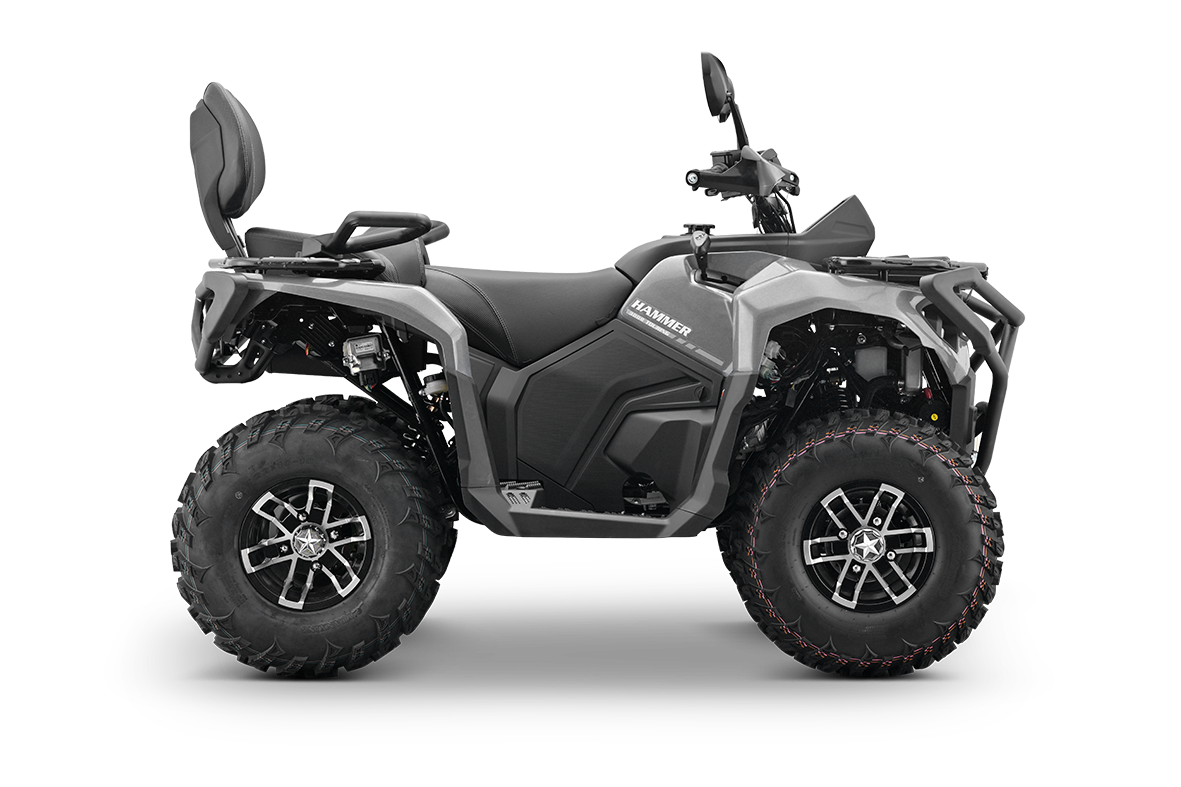

M2 MAX

  • Performance features
  • Parameters
  • Accessories

Parameters

· Engine

Engine Type1-Cylinder,4-Stroke,Water Cooling
Displacement288 ml
Bore And Stroke75 mm x 65.2 mm
Compression Ratio10.5:1
Maximum HorsePower24 HP@70001rpm
Maximum Torque26 N-M@ 5500 rpm
Fuel SupplyCarburetor
Start SystemElectric Start
TransimissionChain Drive

· Chassis

Front SuspensionDual A Arms Independent Suspension
Rear SuspensionSwing Arm
Front BrakeHydraulic Disc Brake
Rear BrakeHydraulic Disc Brake
Front Tires23x7-10
Rear Tires22x10-10

· Dimensions / Capacity

LxWxH1750x1030x1280 mm
Wheelbase1180 mm
Ground Clearance290 mm
Maximum Speed85 km/h
Net Weight238 kg
Fuel Tank Capacity10 L
Maximum Load Capacity150 kg
40HQ39 Units
