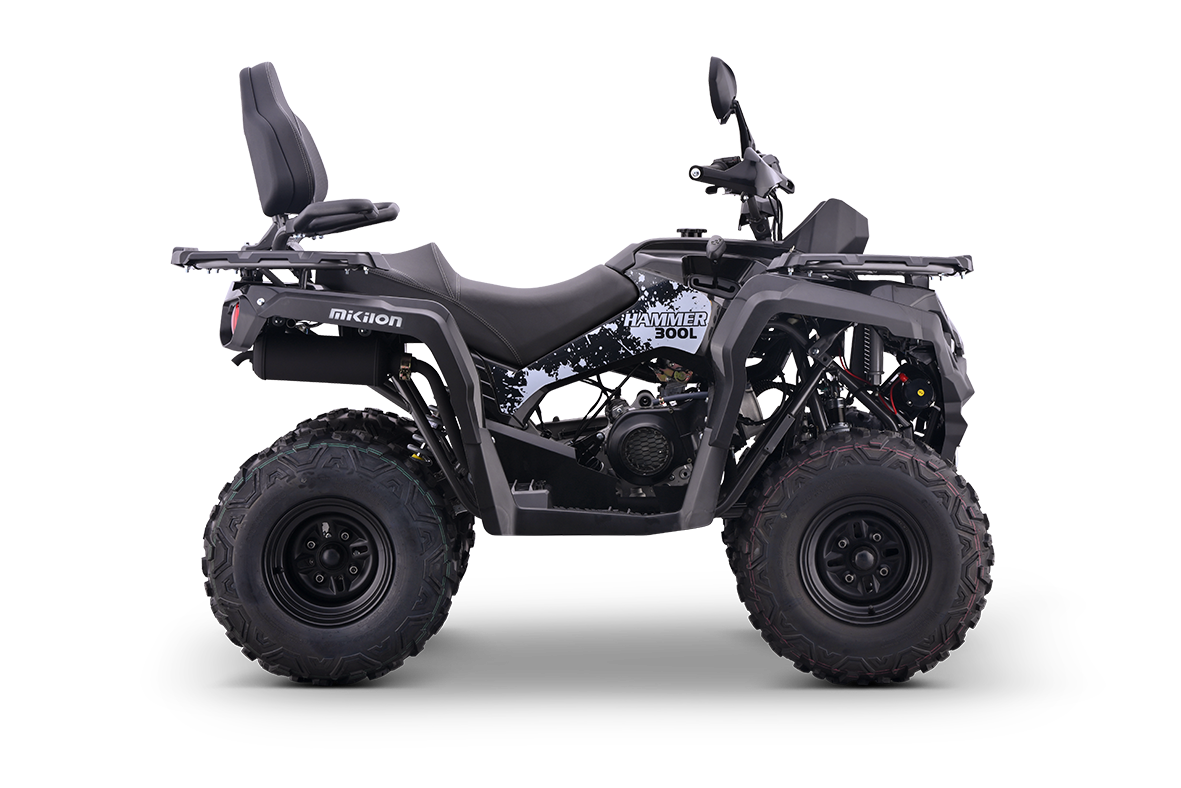

HAMMER 300L

  • Performance features
  • Parameters
  • Accessories

Parameters

· Engine

Engine Type1-Cylinder,4-Stroke,WaterCooling
Displacement288 ml
Bore And Stroke75 mmx65.2 mm
Compression Ratio10.5:1
Maximum HorsePower24 HP@7500 rpm
Maximum Torque26 NM@ 6000rpm
Fuel SupplyCarburetor
Start SystemElectric Start
TransimissionChain Drive

· Chassis

Front SuspensionDual A Arms Independent Suspension
Rear SuspensionSwing Arm
Front BrakeHydraulic Disc Brake
Rear BrakeHydraulic Disc Brake
Front Tires23x7-10
Rear Tires22x10-10

· Dimensions / Capacity

LxWxH1870x1050x1400 mm
Wheelbase1195 mm
Ground Clearance320 mm
Maximum Speed85 km/h
Net Weight176 kg
Fuel Tank Capacity9 L
Maximum Load Capacity150 kg
40HQ39 Units
